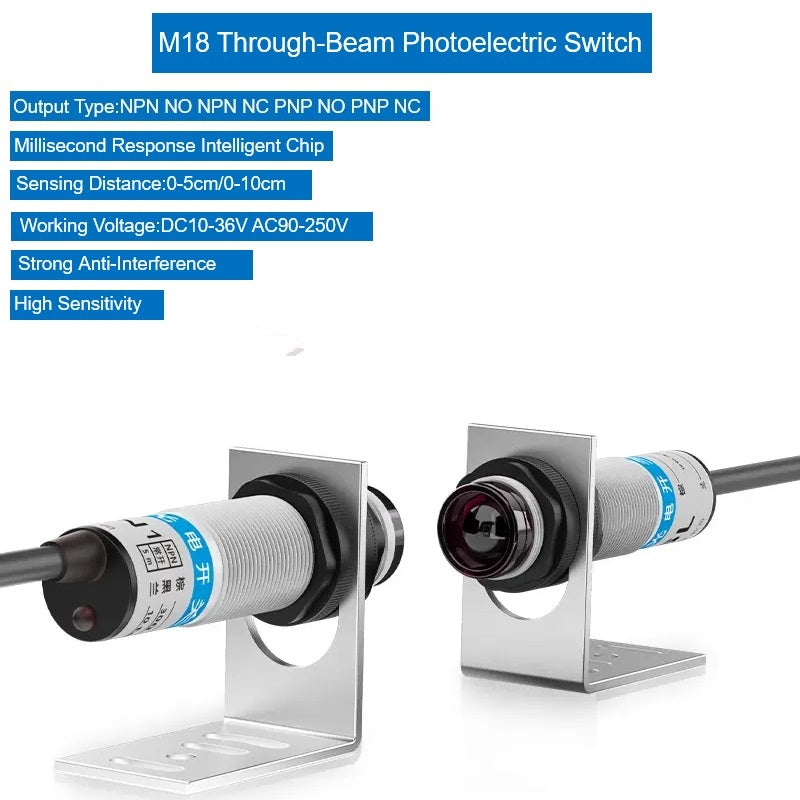

M18 Cylindrical Through-Beam Sensor Photoelectric Switch DC Tri-Wire NO Photoelectric Switch
- Prix habituel
- $0.01 USD
- Prix habituel
-
- Prix soldé
- $0.01 USD
- Prix unitaire
- par
Earn 0 Reward Points.
Learn More...
Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.
Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.
When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.
We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.
You will also be asked to provide an email address, to which we will send confirmation that your order was placed.
Impossible de charger la disponibilité du service de retrait
Details
- SKU: MR08-10
- Distributeur Electrical Tools
- Type: M18 cylindrical photoelectric switch
- Availability: In Stock
Description
| Model Number: | E3F-18D5MA1+L5 |
| Type: | Photoelectric Sensor |
| Standard Targe: | White Card Reflcetion Rate 90% |
| Theory: | Self-induction |
| Output: | NPN NO/NPN NC/PNP NO/PNP NC |
| Output Indicator: | Red LED |
| Ambient Temperature: | -20~+70℃ |
| Assured Distance: | 0-45 CM |
| Sensing Distance: | 10-50 CM |
| Circui Tprotection: | Surge absorption, reverse connection protection |
| Shock: | 500m/s(50G) ineach X,Y,Z directionfor 3times |
| Residual Voltage: | ≤1V |
| Supply Voltage: | DC:10-30VDC；AC:90-250V |
| Response Frequency(F): | 600Hz(DC)/25Hz(AC） |
| Protection Degree: | IP 65 |
| Circuit Protection: | 1mm Amp litudeat Frequency10~55Hz(for1min）IneachX.Y.ZDirection |
| Connection: | 2m PVC Cable |
| Shock: | 500m/s(50G) Ineach X,Y,Z Direction for 3times |
| Material: | Brass Nickled+ABS |
| Consun Ption Current: | Diffuse Reflection and Retro-reflective:≤15mA;Through-Beam:≤25mA |
| Detection Target： | Opaque Objects and Transparent Objects |
