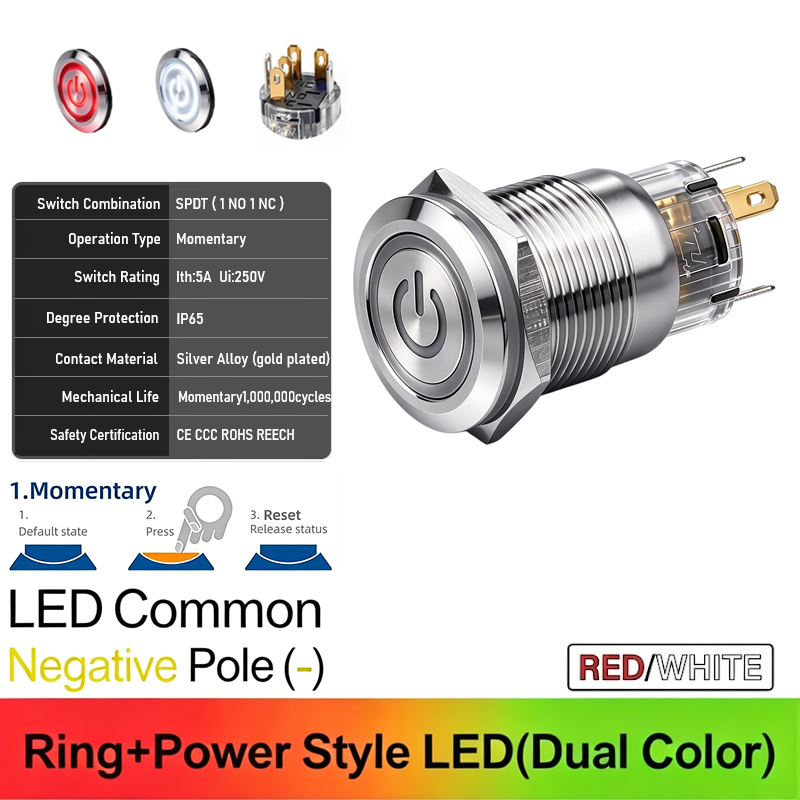

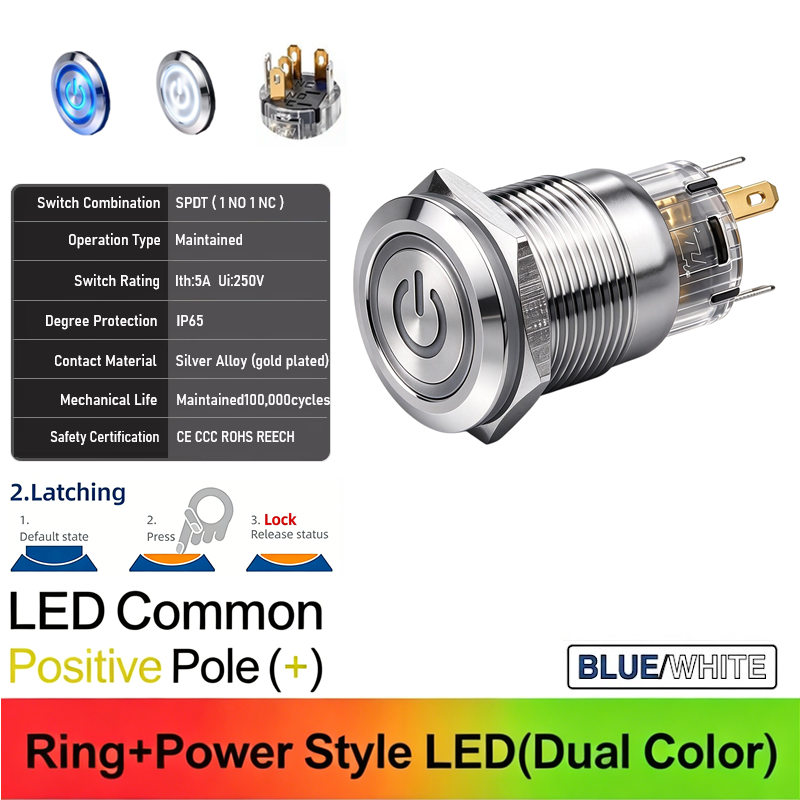

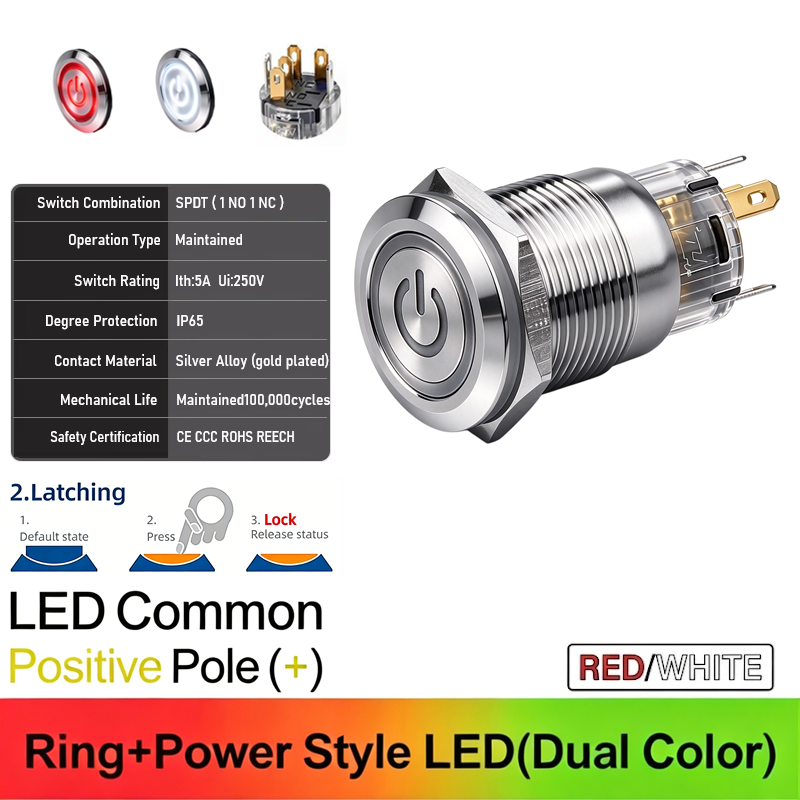

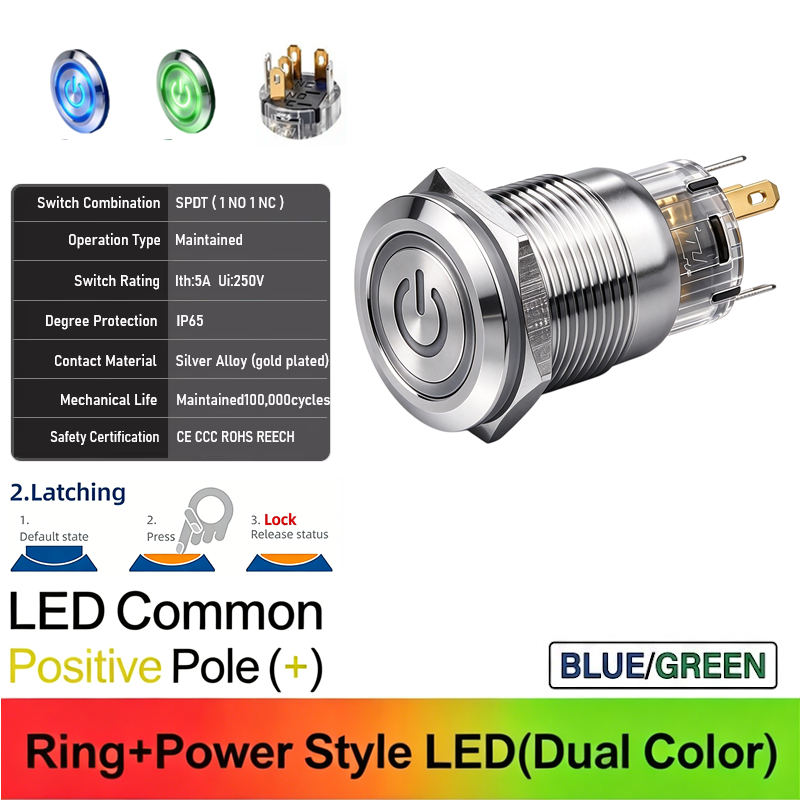

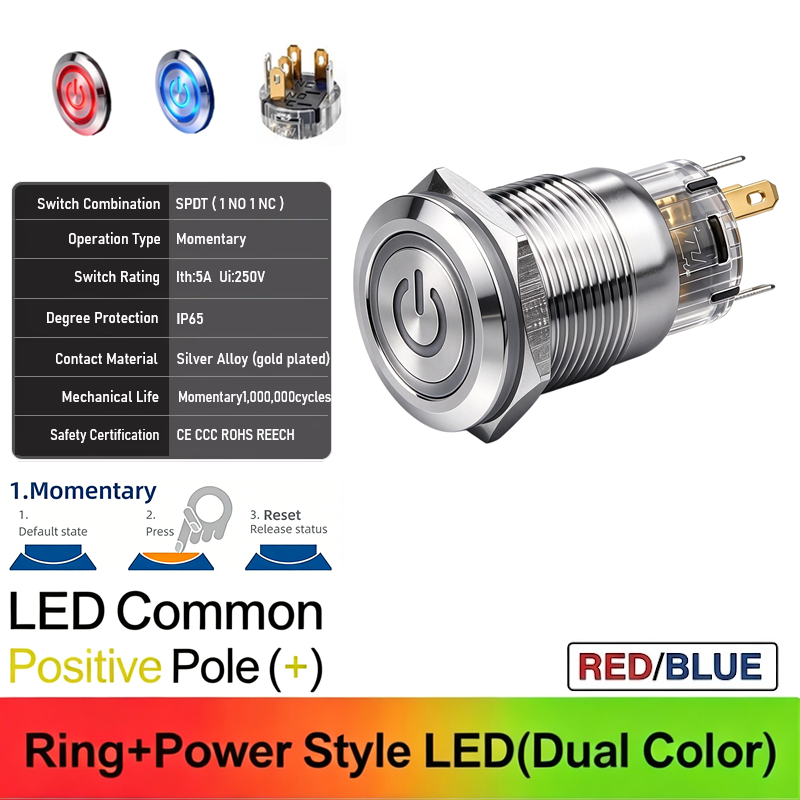

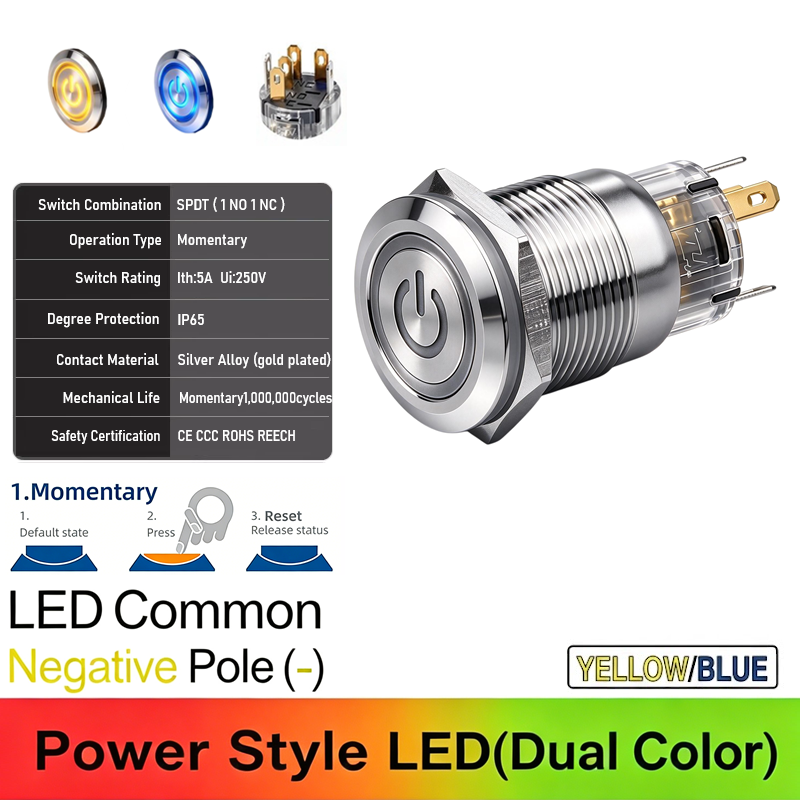

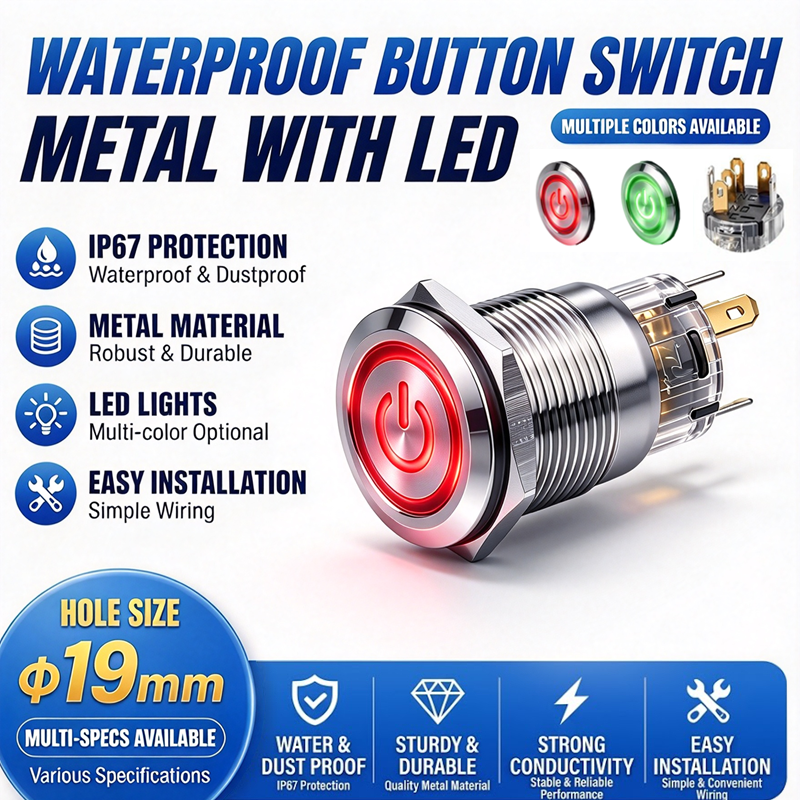

19mm SPDT 5A 250V IP67 Dual-Color RG Ring+Poeer symbol Illuminated Stainless Steel Vandal Resistant Push Button Switch

Rugged Dual-Color Status Indication, Built for High-Traffic Harsh Environments

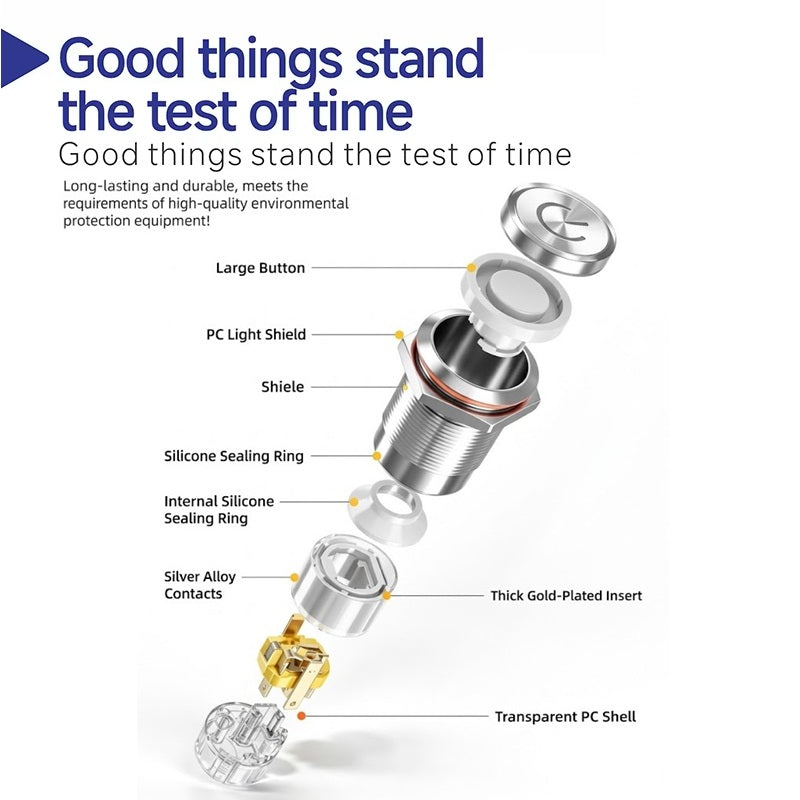

This 19mm vandal-proof push button switch is purpose-built for industrial and public-facing installations where tamper resistance, water protection, and clear two-state visual feedback are critical. Machined from solid 304 stainless steel, its one-piece reinforced structure resists impact, forced prying, and accidental knocks, eliminating the loose parts and easy breakage issues common to ordinary plastic switches.

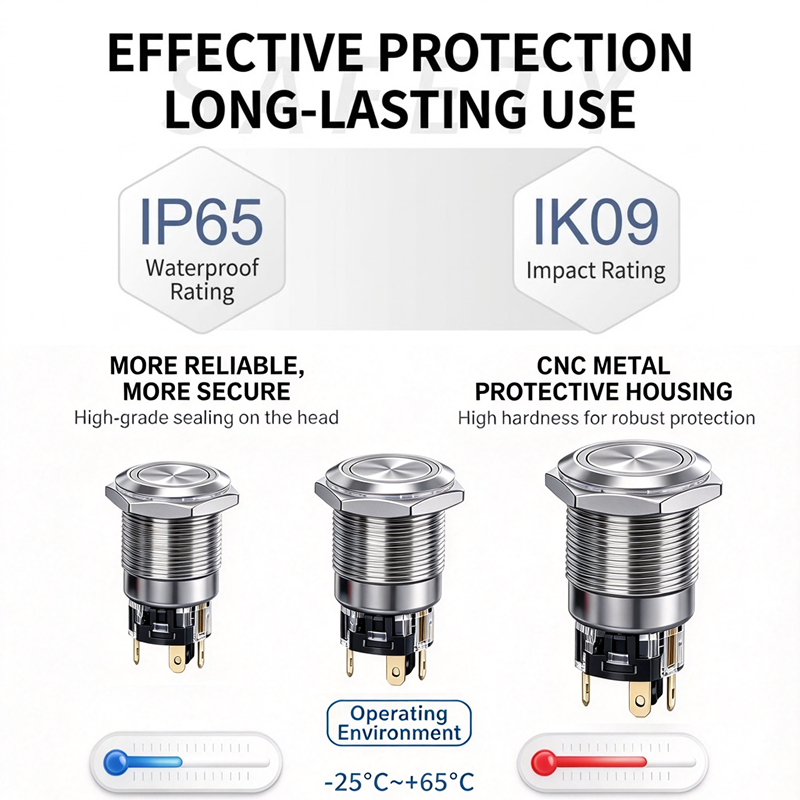

With a certified IP67 ingress protection rating, it is fully dust-tight and capable of withstanding temporary immersion in 1 meter of water for 30 minutes. It operates stably in wet workshops, outdoor kiosks, food processing washdown areas, and marine equipment panels, no extra protective cover required for most exposed use cases.

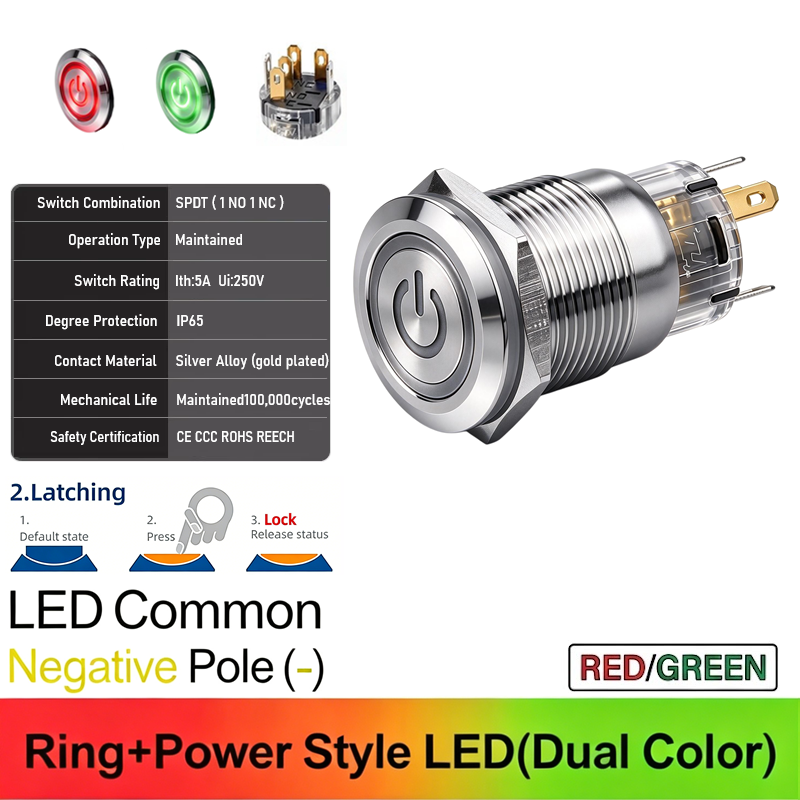

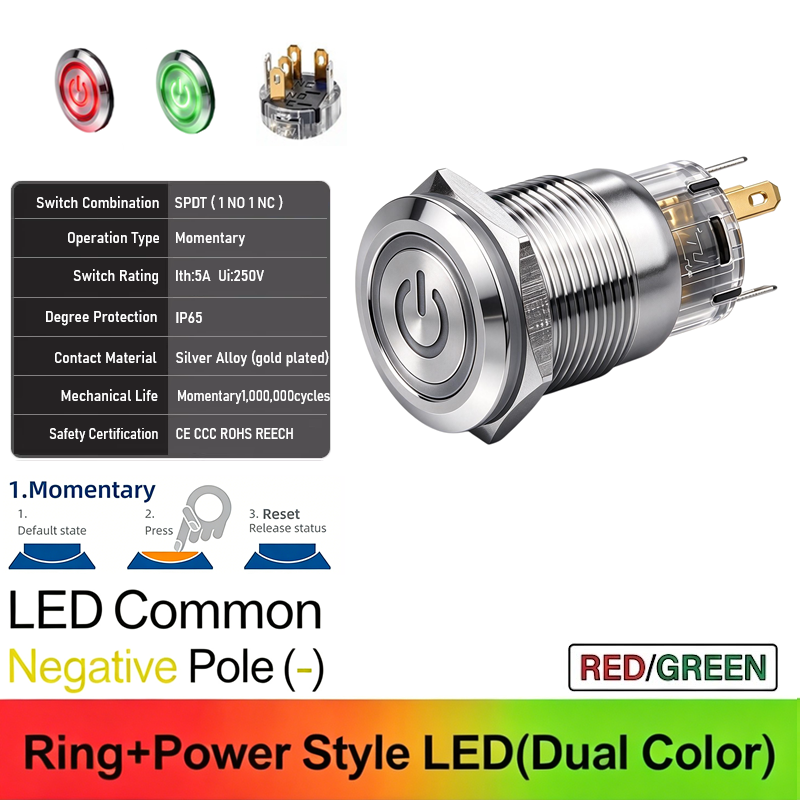

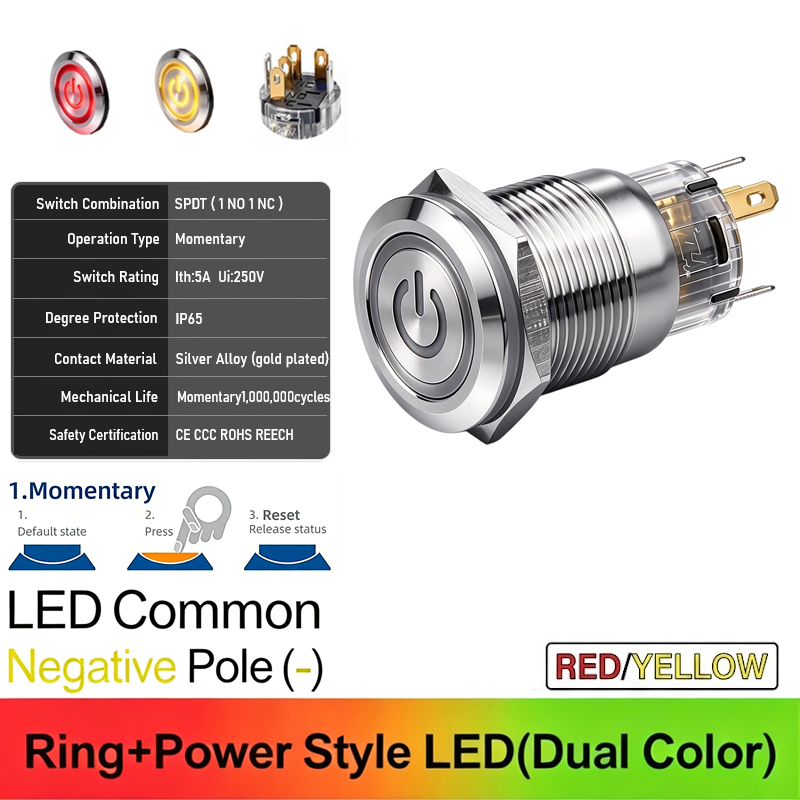

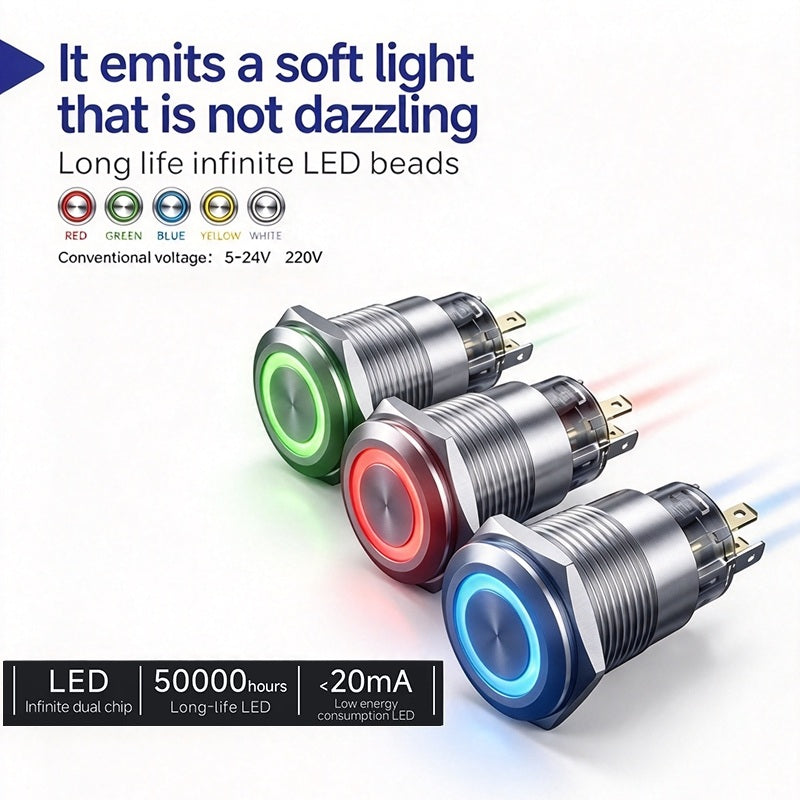

The integrated RG dual-color ring illumination delivers two distinct visual states — red and green — in one single button. Operators can instantly confirm power status, equipment running state, or safety lock position from a distance, no need to approach the panel for close inspection. This dual-color design reduces extra indicator light occupation on the control panel, making your equipment layout more compact and tidy. The built-in LED elements support over 50,000 hours of continuous operation, far outlasting traditional incandescent indicator lamps.

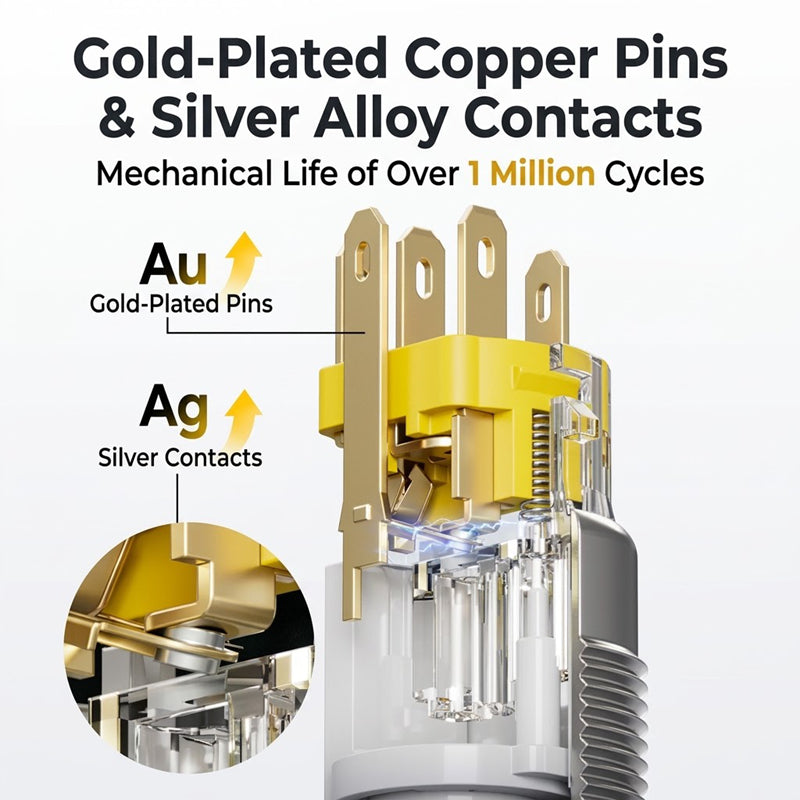

Equipped with silver-plated SPDT contacts and a 5A 250VAC electrical rating, the switch supports both momentary self-reset and latching maintained operation modes, fitting most standard industrial control circuit requirements. Its mechanical lifespan exceeds 1,000,000 operation cycles, making it a reliable long-term replacement for low-durability ordinary switches.

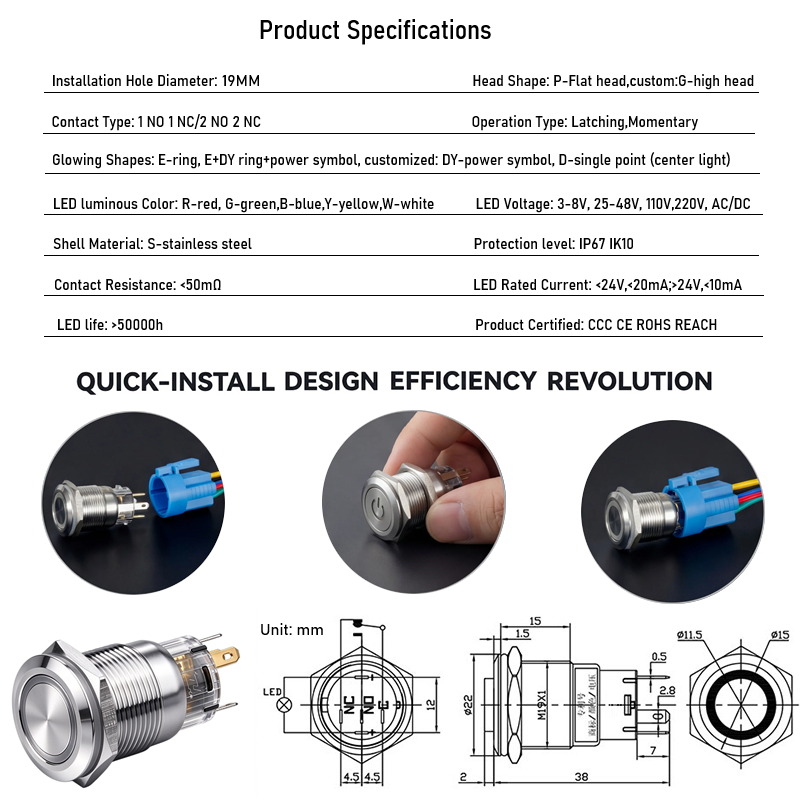

Core Specifications
● Mounting Hole: 19mm, perfectly compatible with global standard 19mm panel cutouts

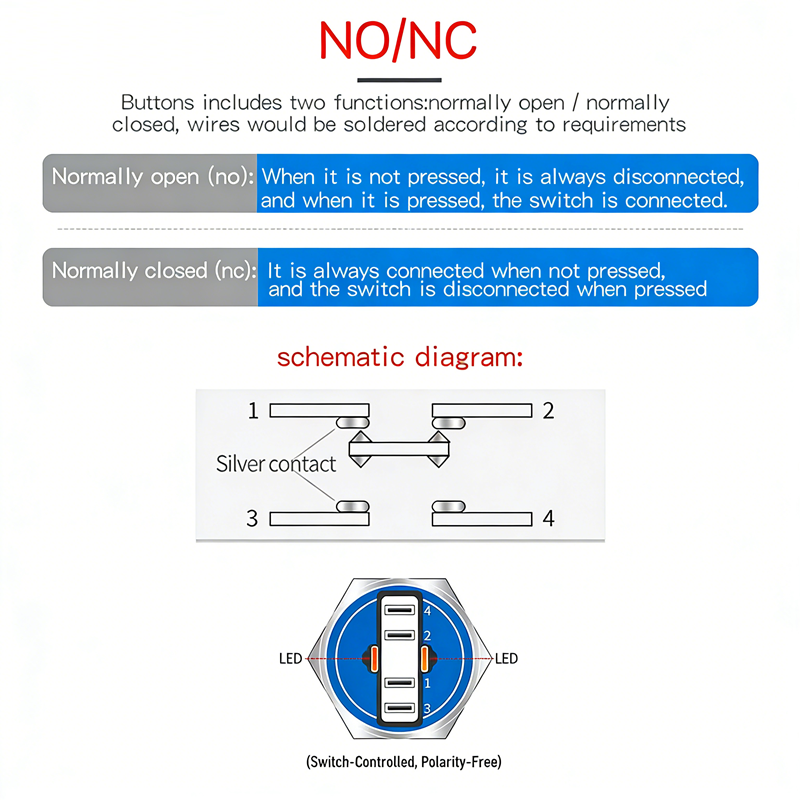

● Contact Configuration: SPDT (1NO 1NC), directly matches most common control system wiring habits
● Electrical Rating: 5A 250VAC, supports 6V/12V/24V low-voltage DC operation
● Protection Grade: IP67, full dust protection and temporary 1m water immersion resistance
● Housing Material: 304 stainless steel, scratch-proof, corrosion-resistant and easy to clean

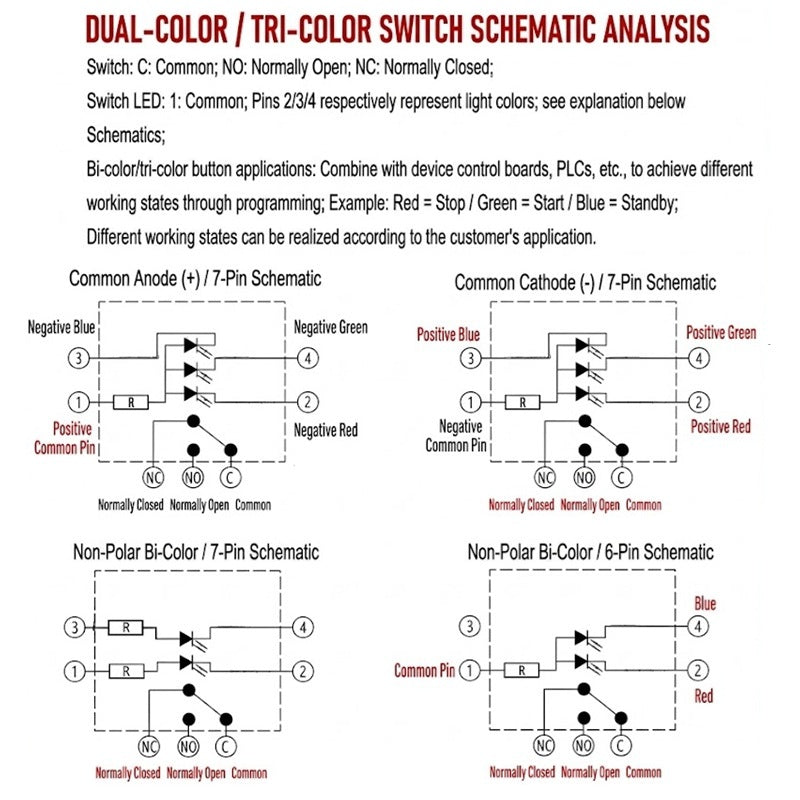

● Illumination: RG dual-color ring light, red and green two-state status indication

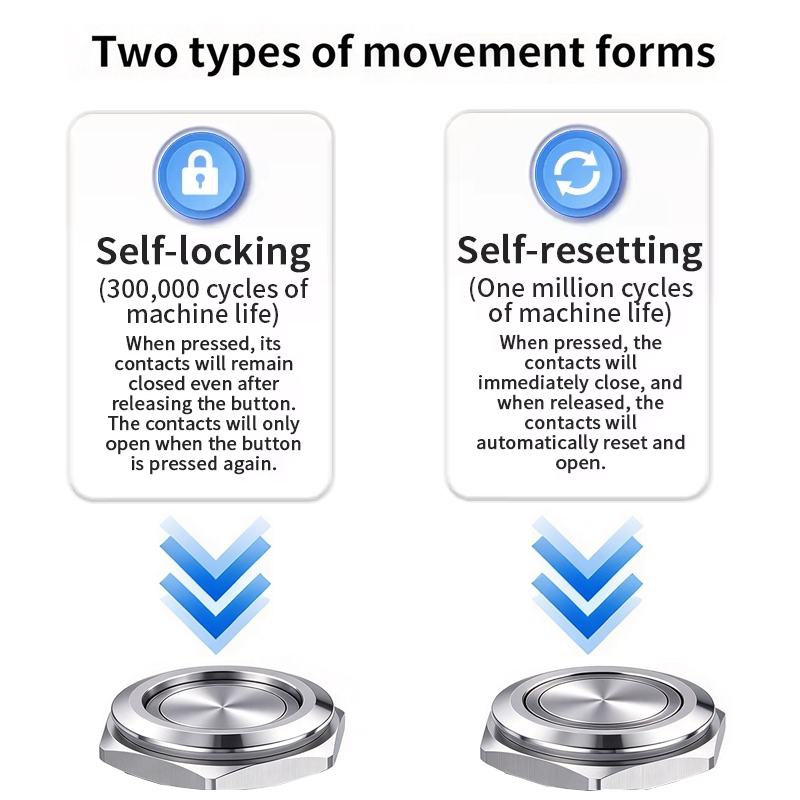

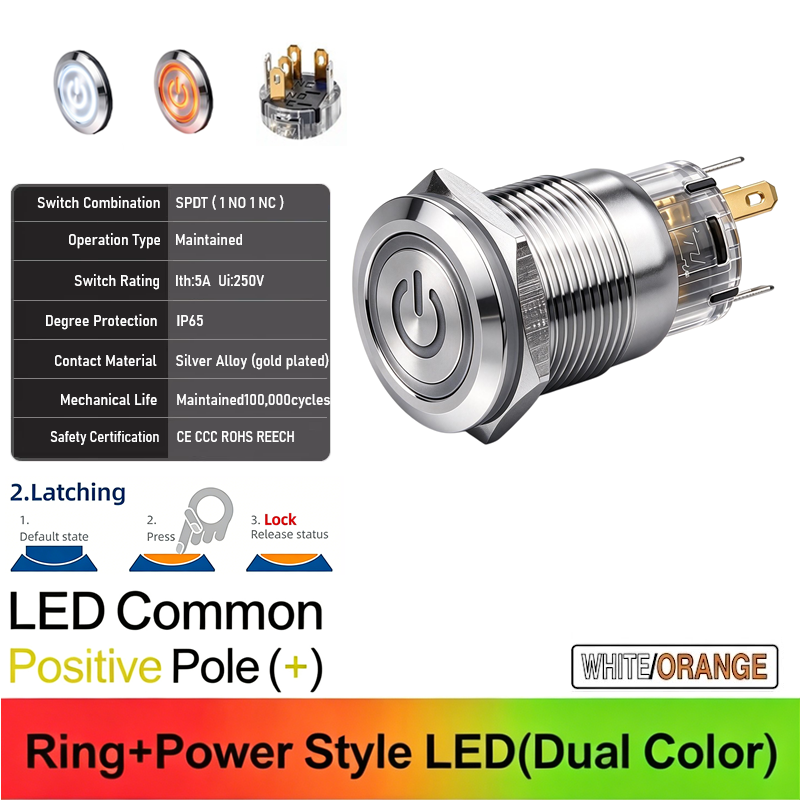

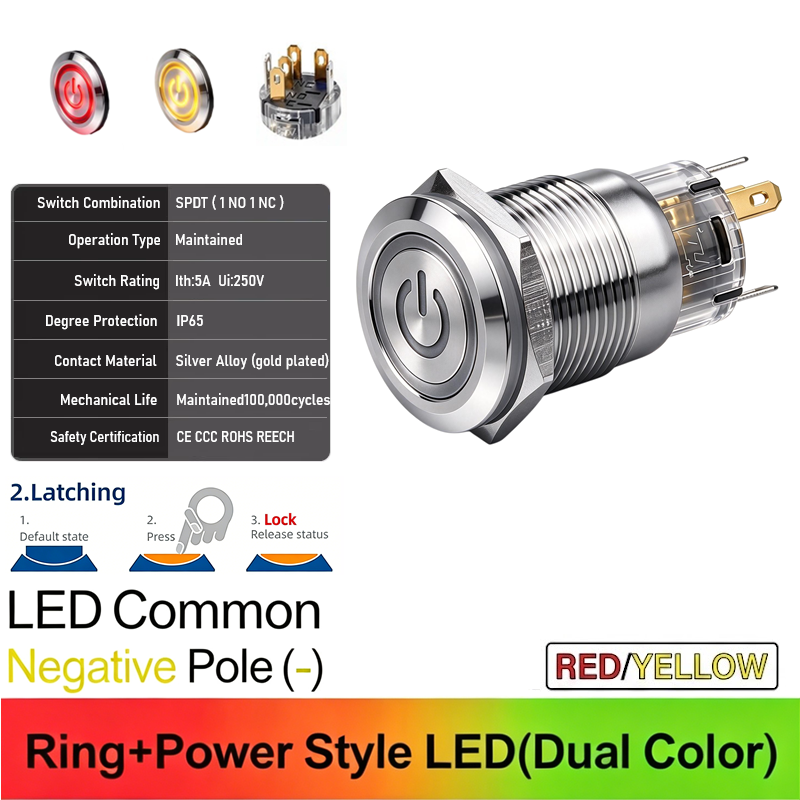

● Operation Mode: Momentary (self-reset) / Latching (maintained), selectable for different usage scenarios
● Mechanical Lifespan: ≥ 1,000,000 operation cycles
● Electrical Lifespan: ≥ 50,000 operation cycles
● Working Temperature: -20°C to +65°C, stable performance in extreme temperature environments

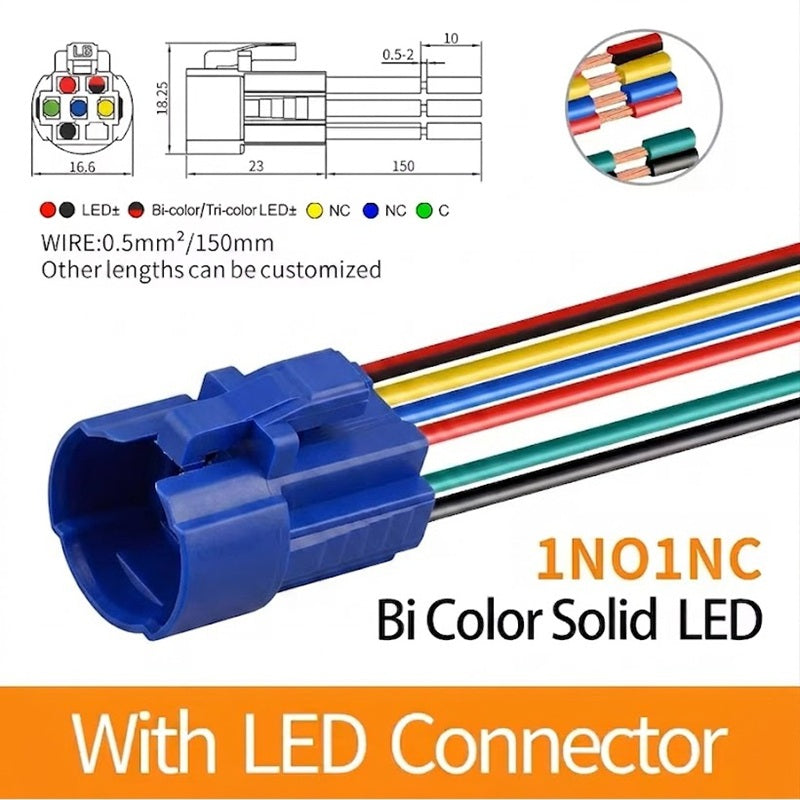

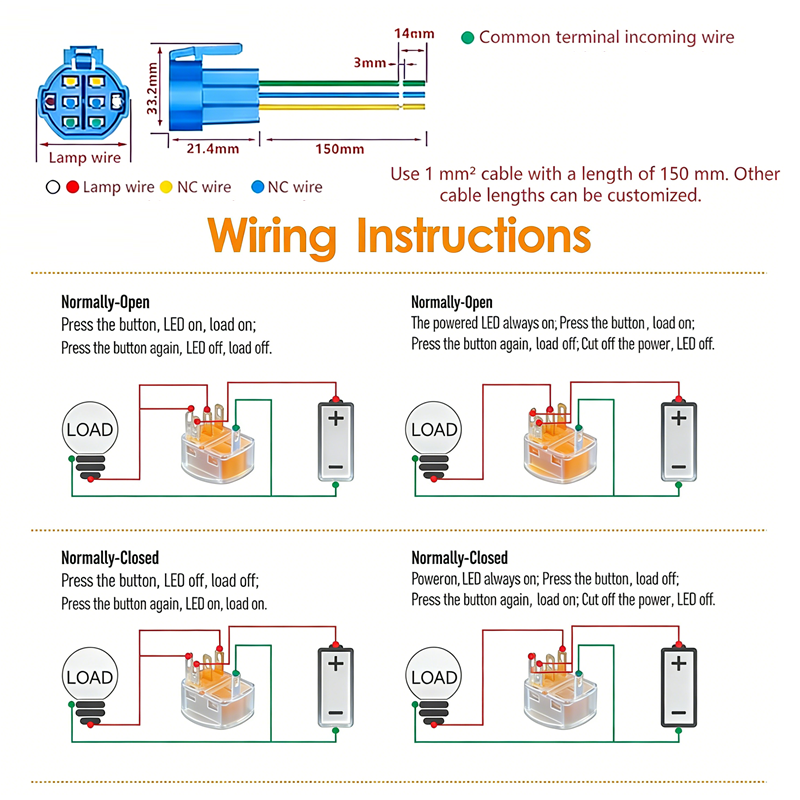

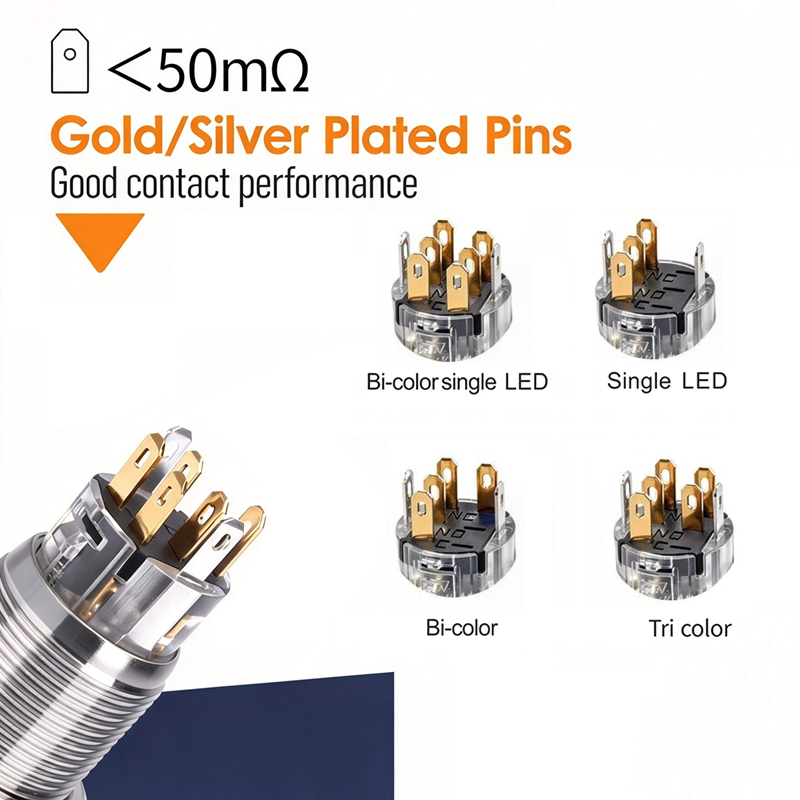

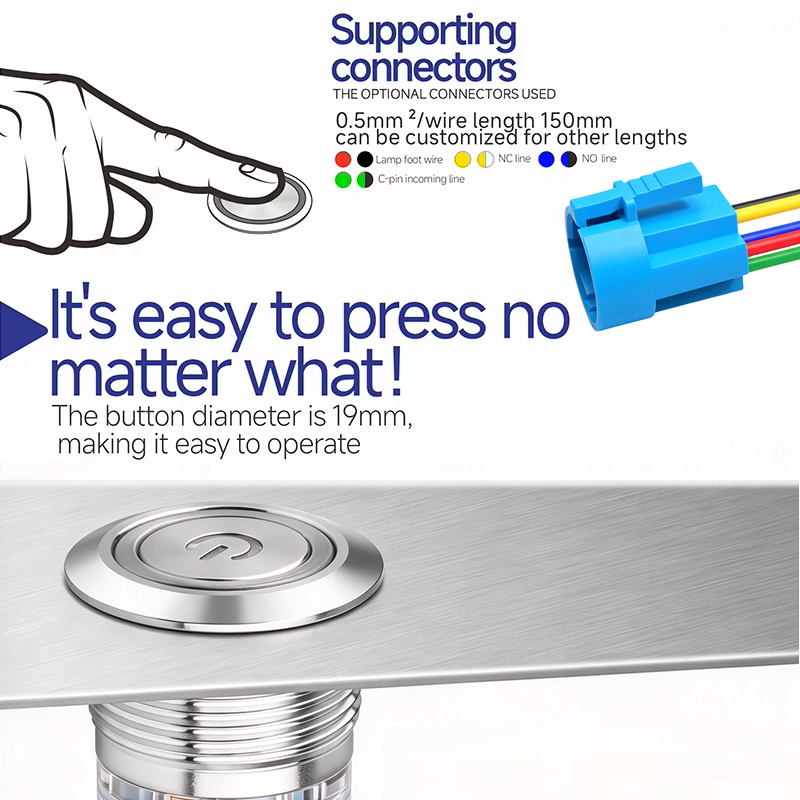

● Termination: Solder lug / 6.3mm quick connect terminal for fast, secure wiring
Typical Application Scenarios
This vandal-resistant RG dual-color push button switch is widely used in industrial control panels, CNC machine tools, access control systems, public self-service kiosks, elevator control stations, AGV robots, automation production lines, and outdoor electrical cabinets. It is a direct drop-in replacement for most 19mm standard metal push buttons on the market, no extra panel modification needed during installation.

Every unit passes 3 strict pre-shipment inspections, including IP67 water pressure test, contact continuity verification, and RG dual-color illumination check. We maintain consistent quality, fast order fulfillment, and support customized illumination voltage options for bulk industrial purchases.

Replace your fragile single-color switches with this rugged dual-color model to simplify your panel design and extend equipment service life.
