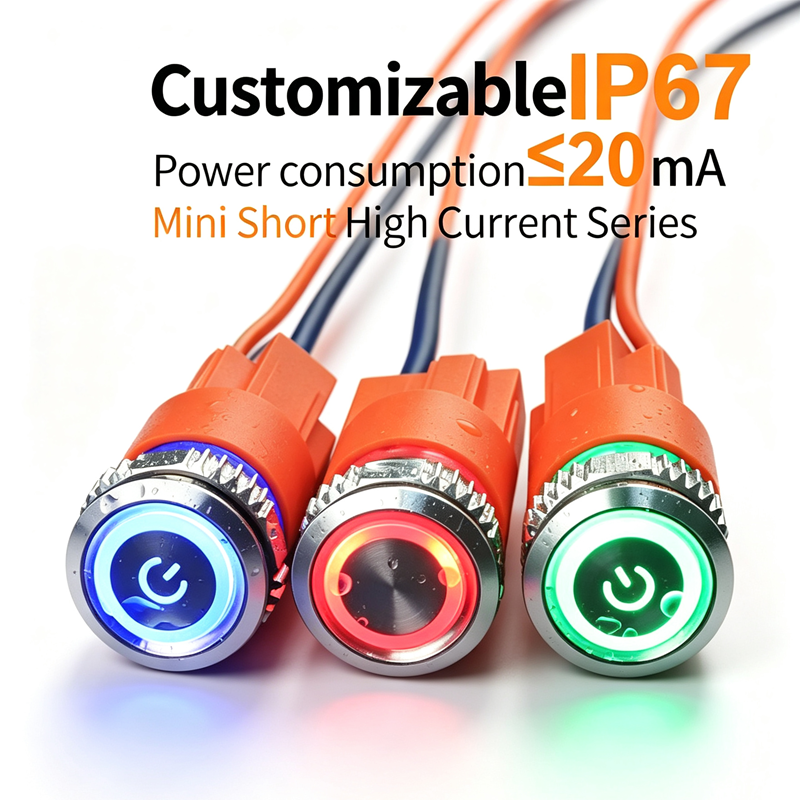

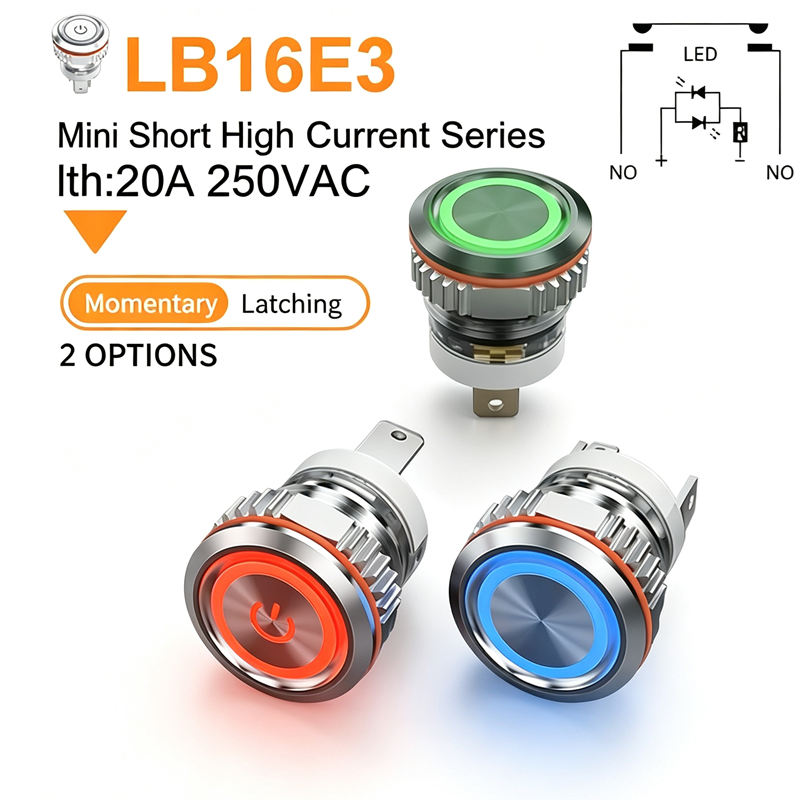

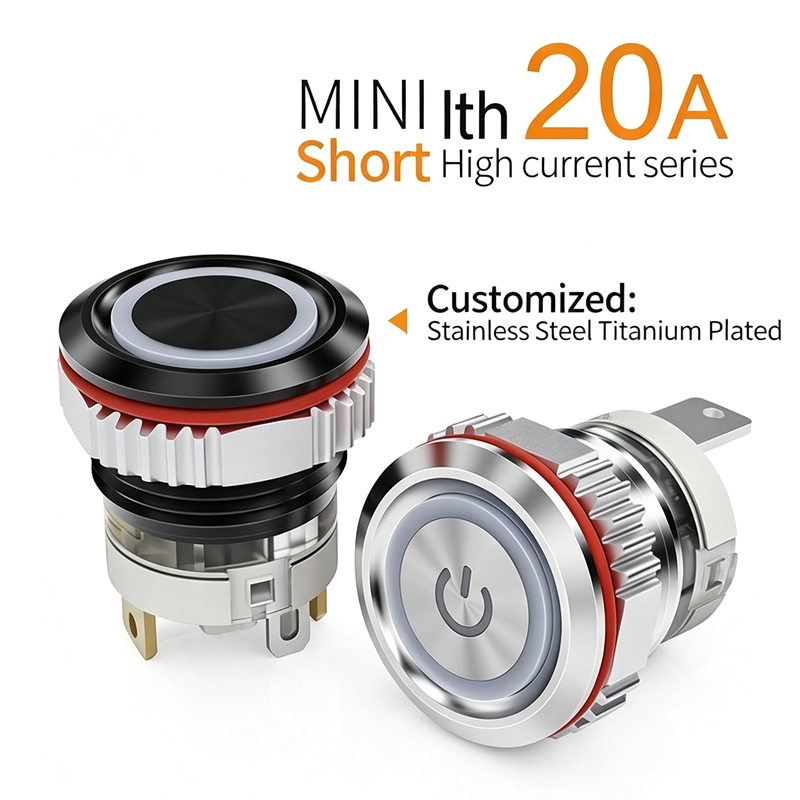

16mm 20A High Current IP67 Stainless Steel Electronic Push Button Switch 1NO Ring Light CE UL ROHS

정가
$8.30
정가
할인가
$8.30
Earn 4 Reward Points. Learn More...
Image: Red LED Ring S Momentary
Terms & conditions
Order in the next
to get it by
Details
  • SKU: LB16E3000
  • 공급업체 Electrical Tools
  • Type: Short high-current metal push button switch
  • Availability: In Stock
Description

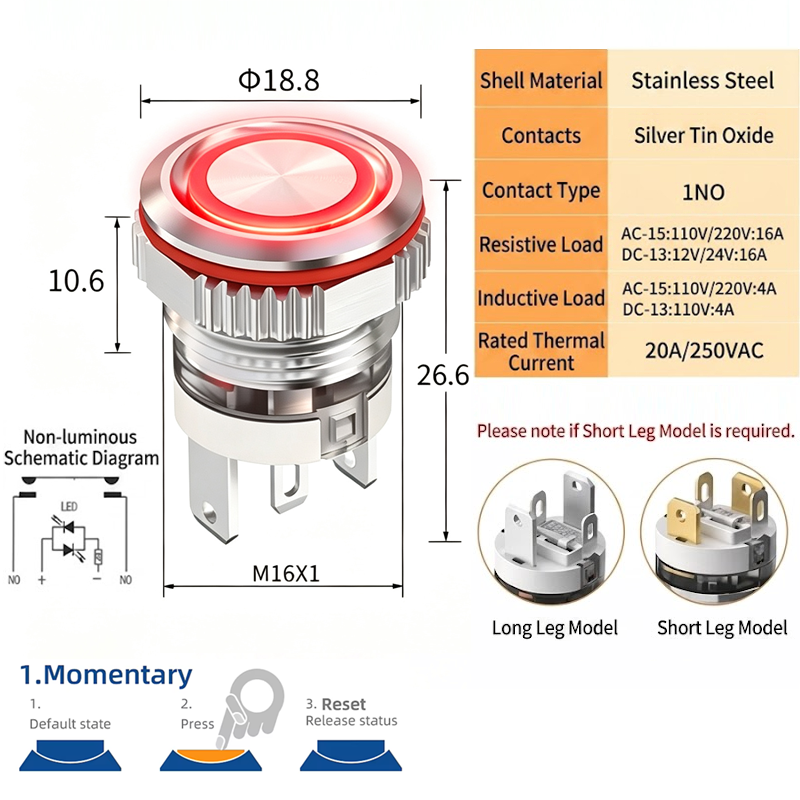

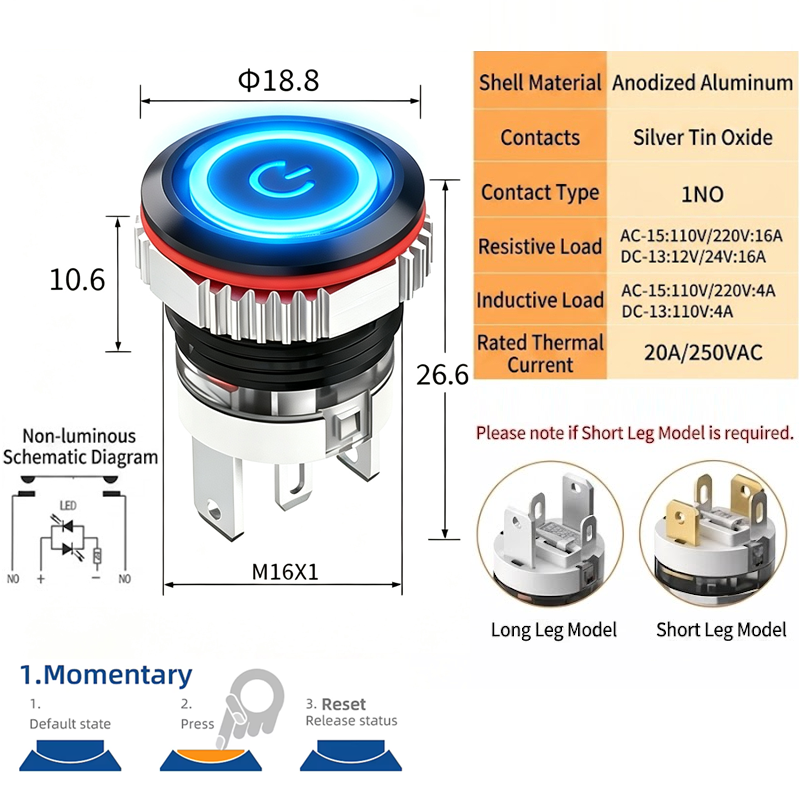

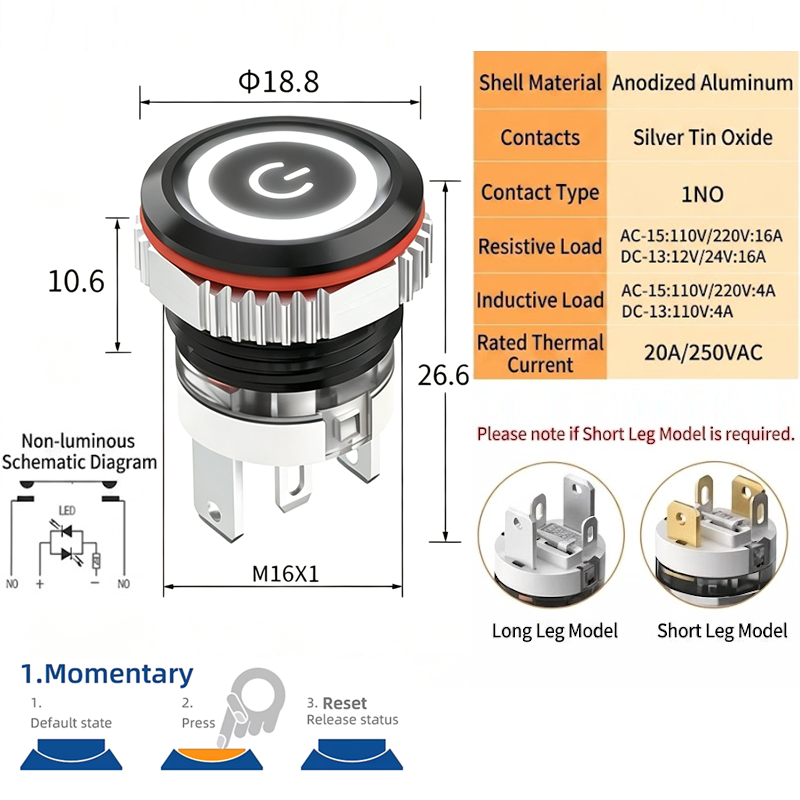

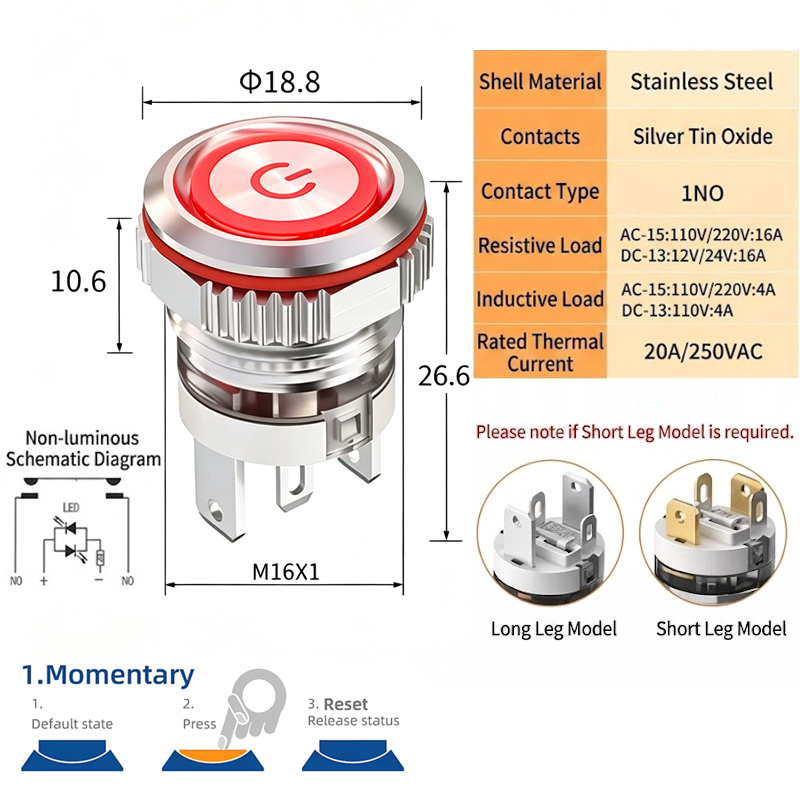

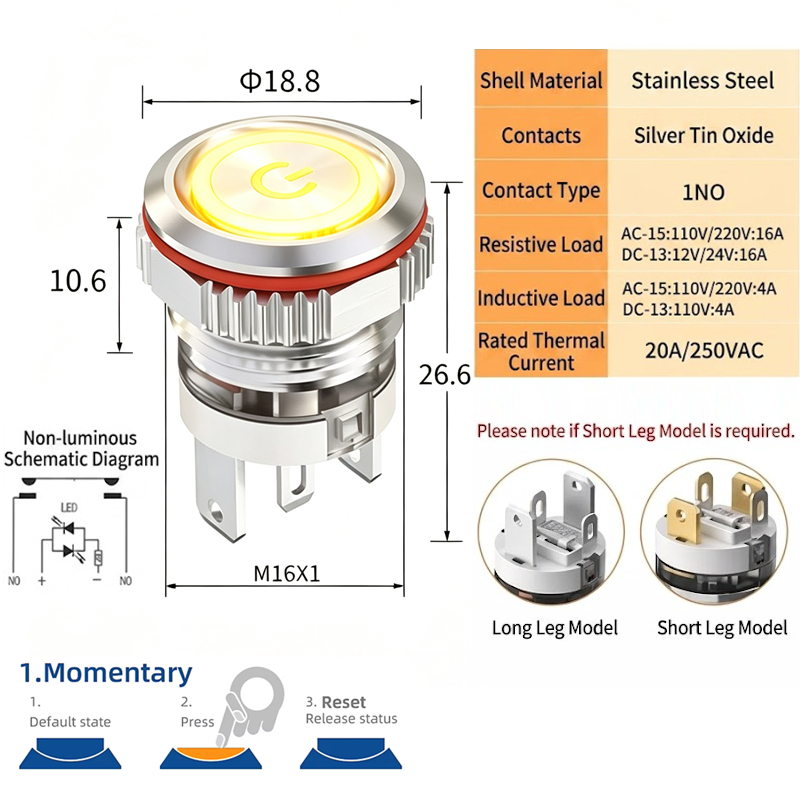

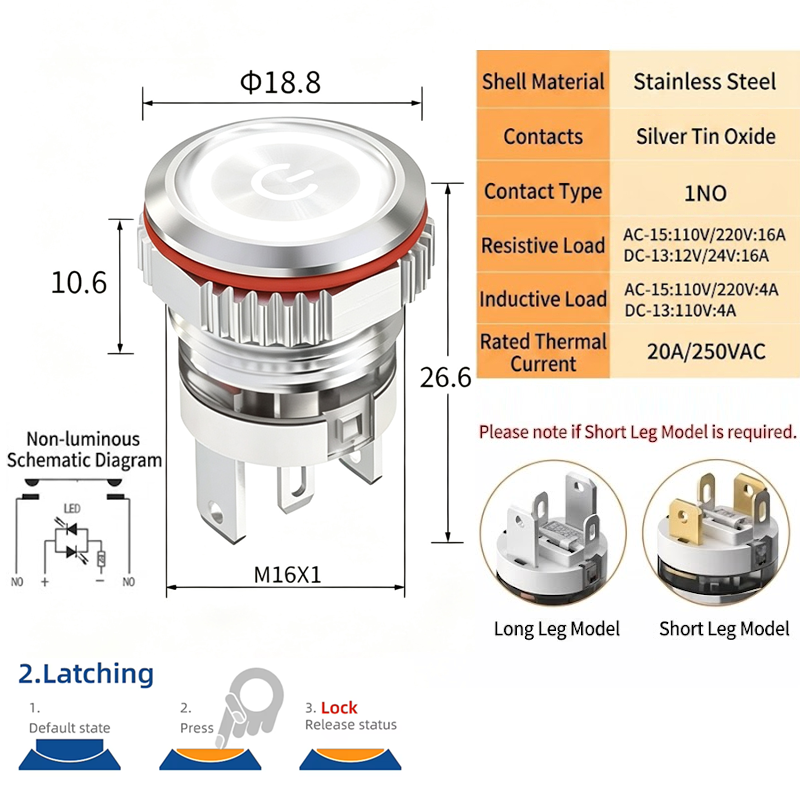

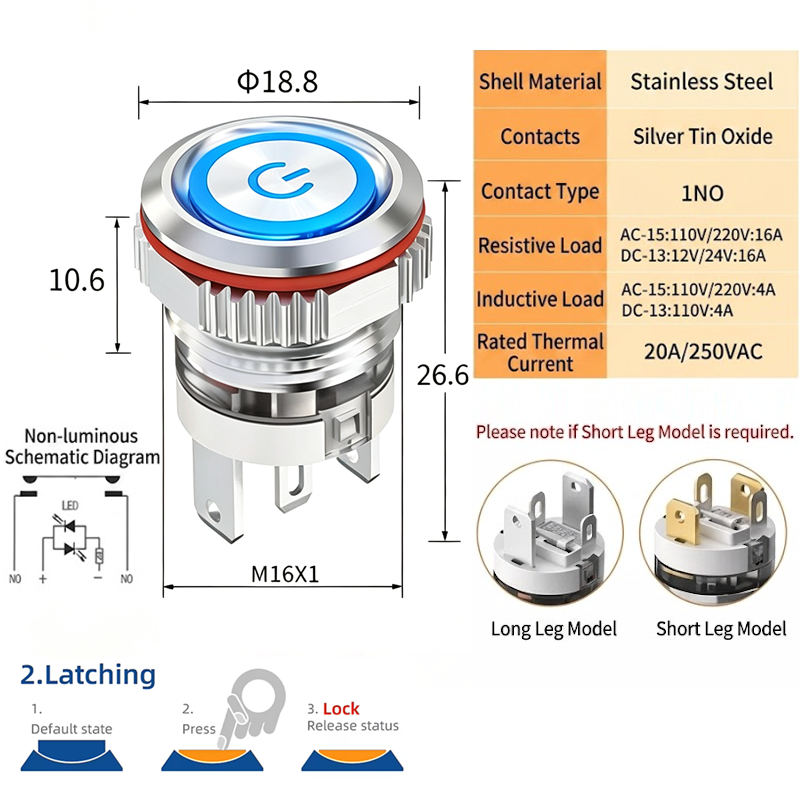

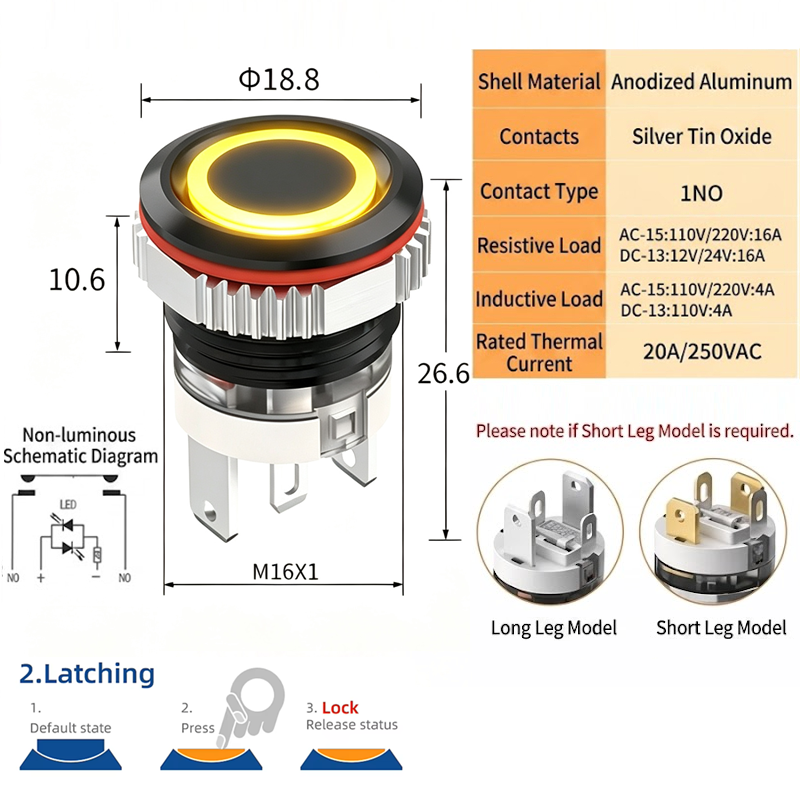

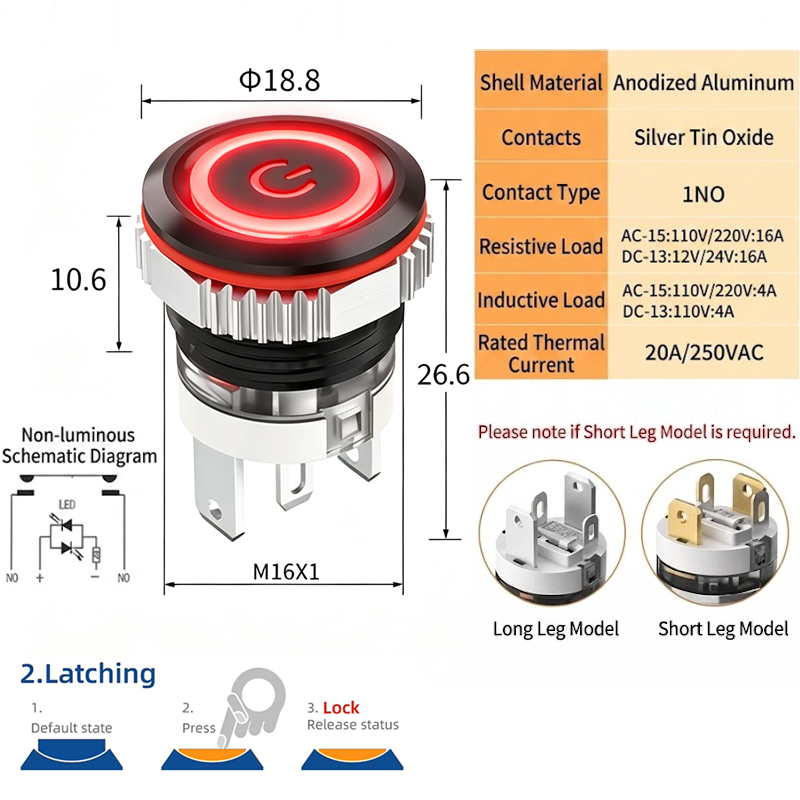

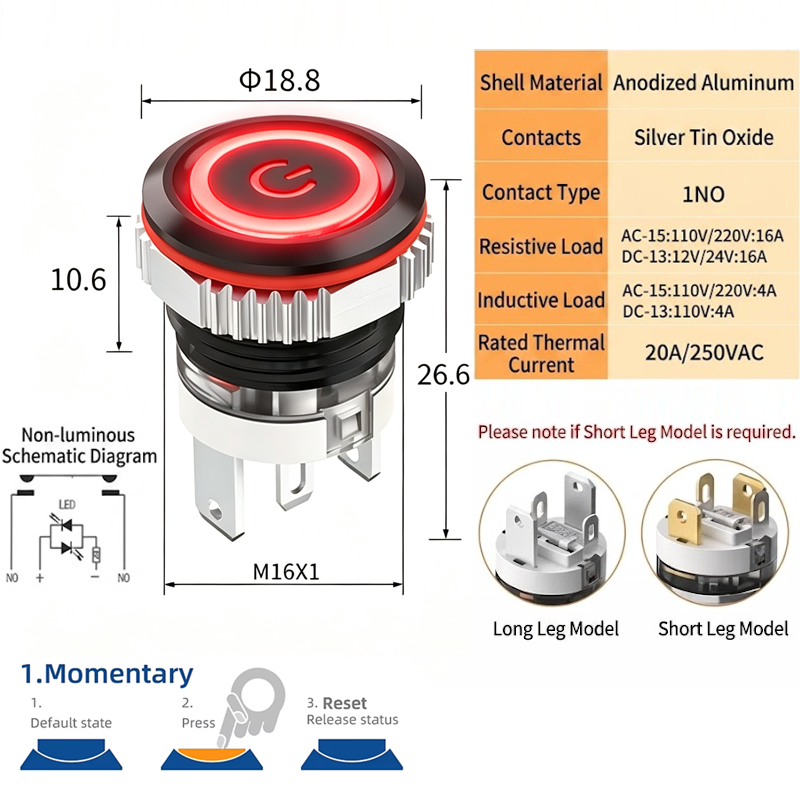

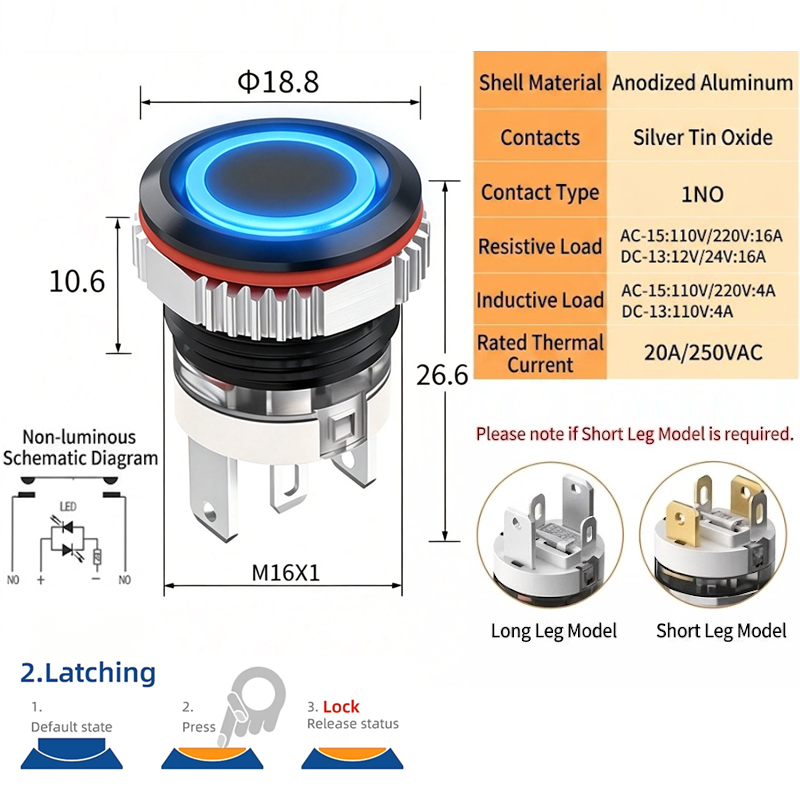

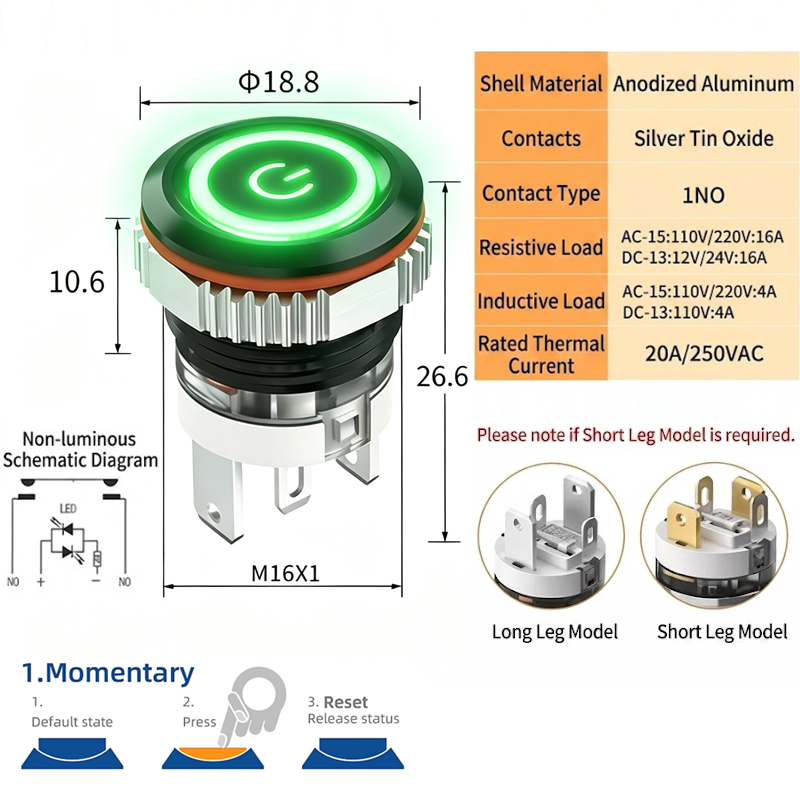

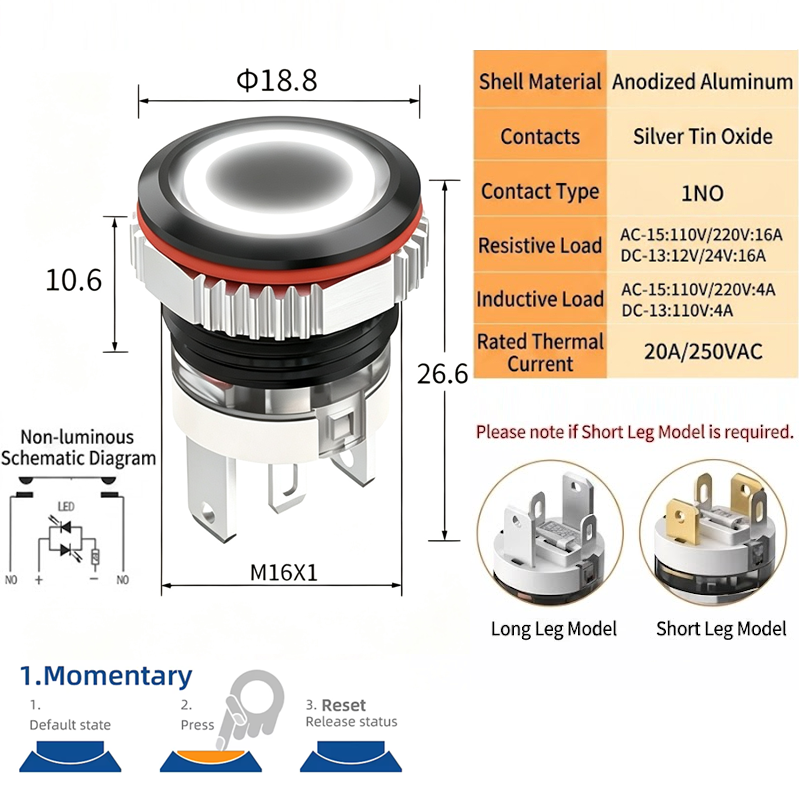

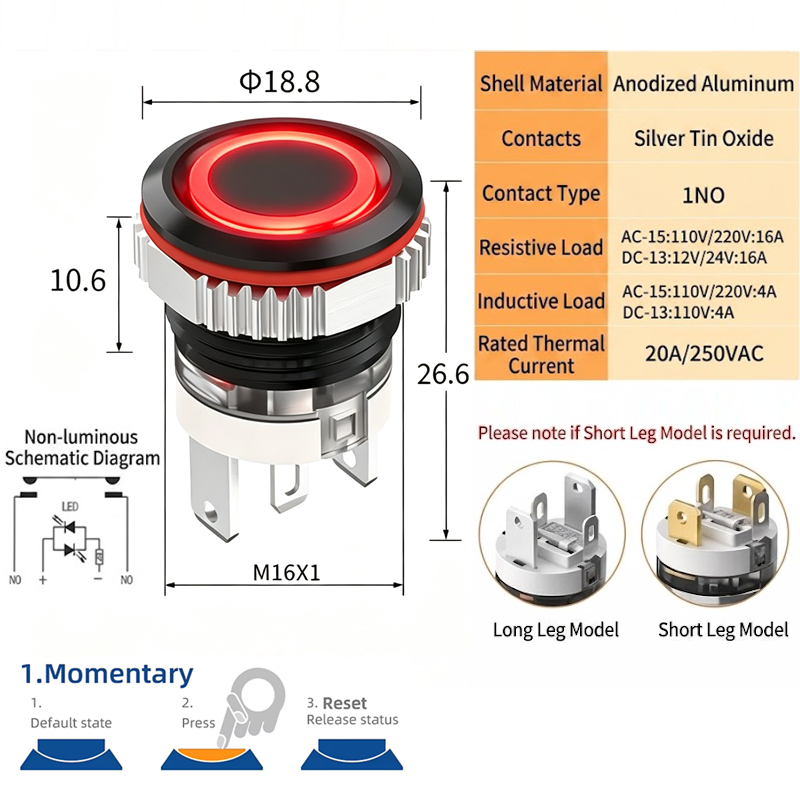

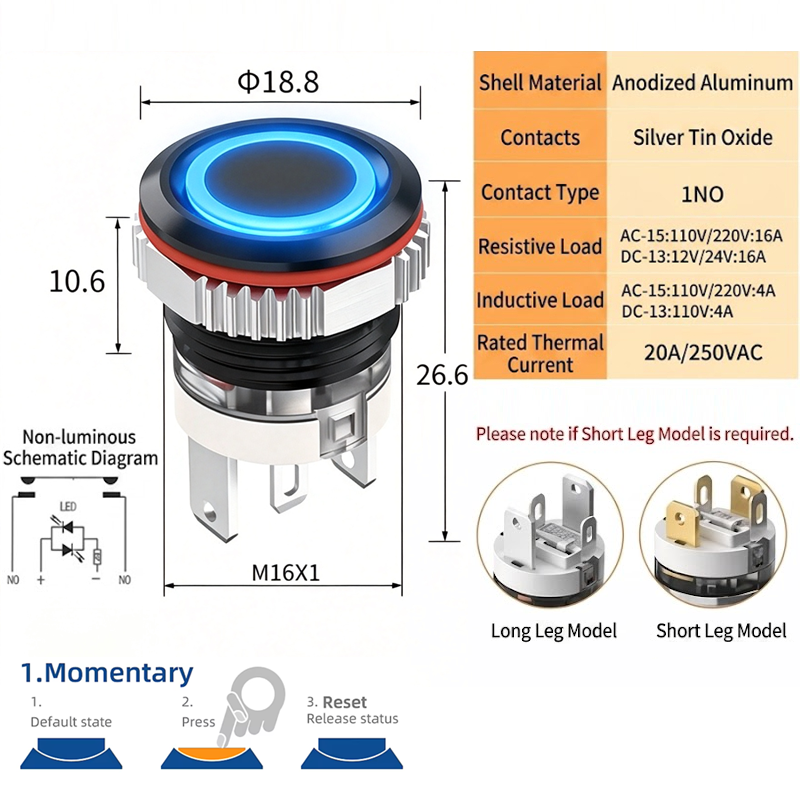

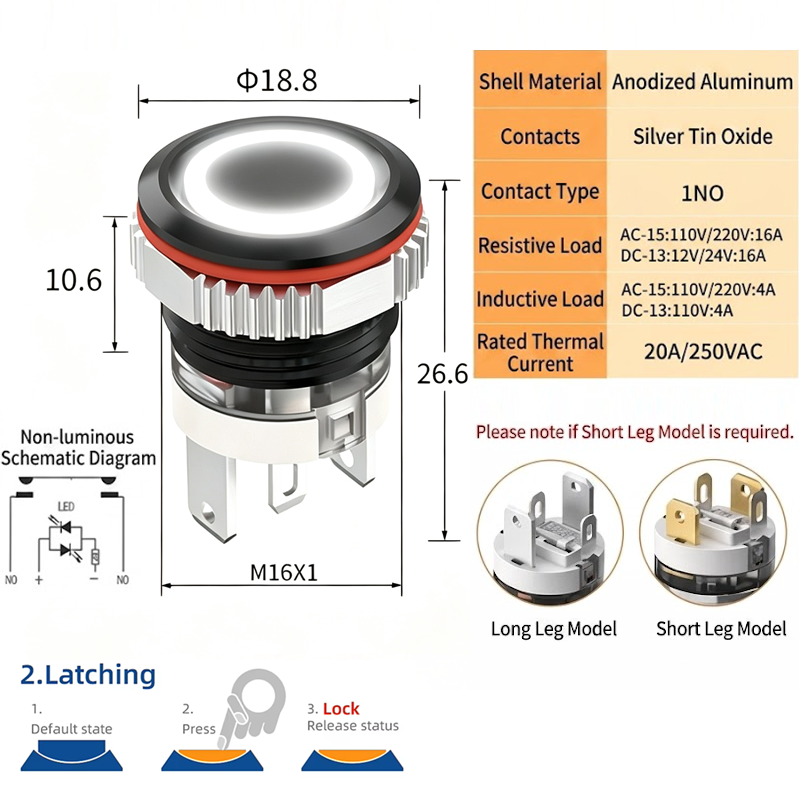

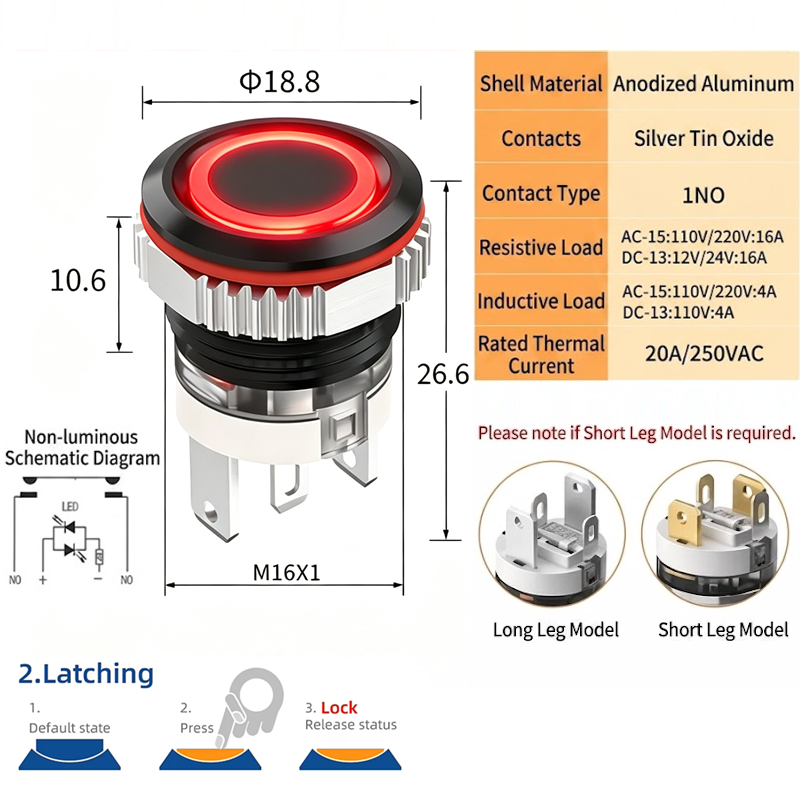

Mounting Aperture 16mm
Serial Number Short High-Current Metal Push Button Switch
Head Shape Flat Head

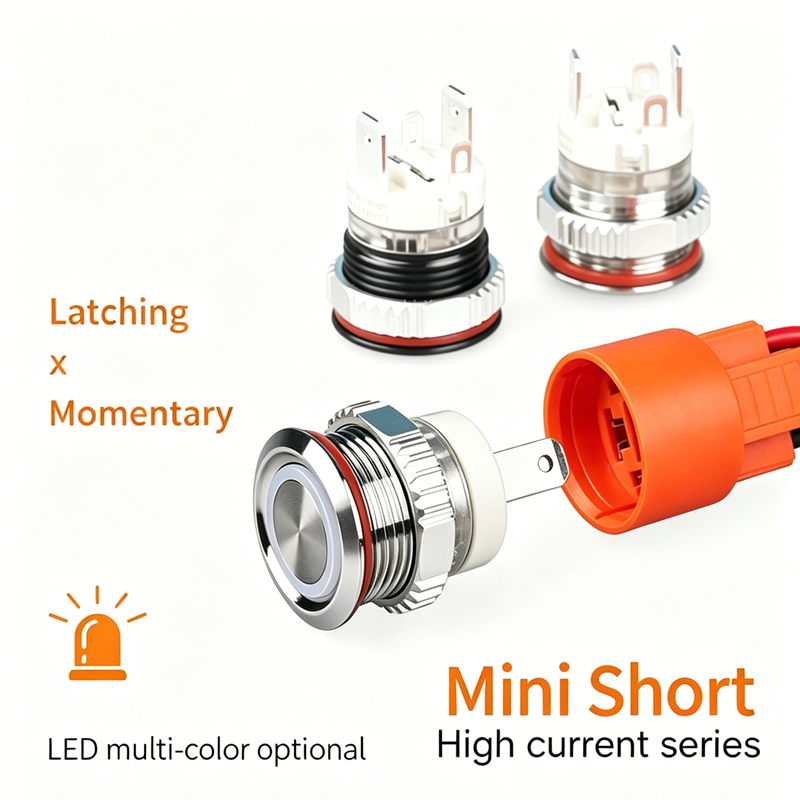

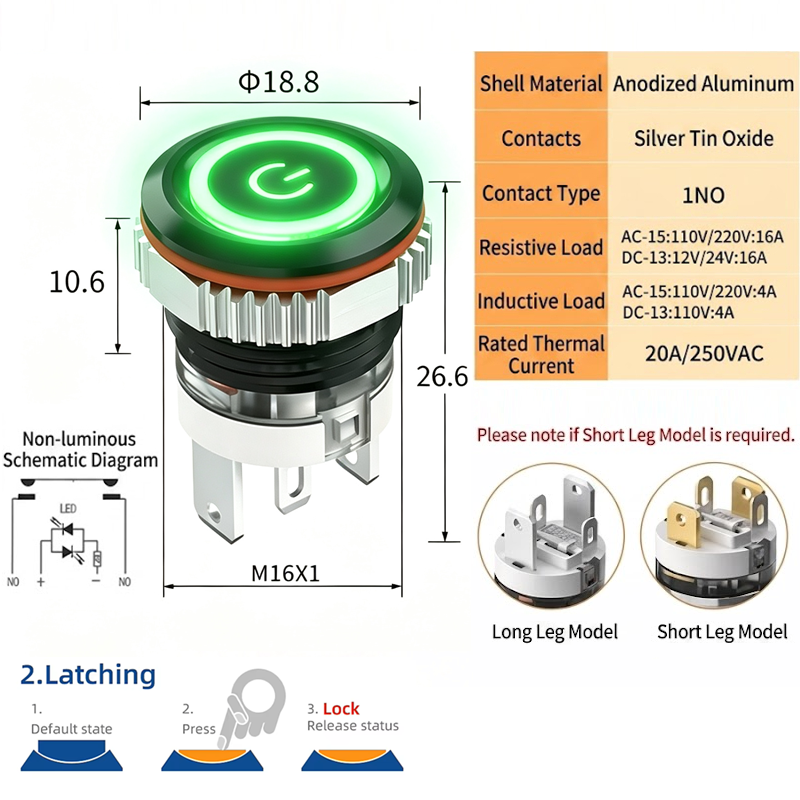

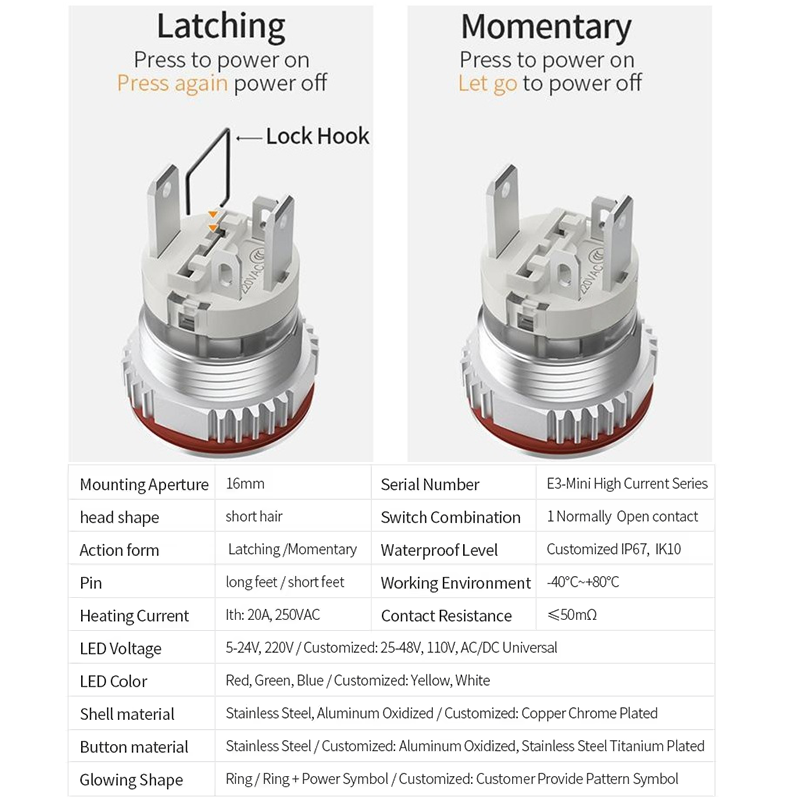

Switch Combination Self-locking / Self-resetting
Action Form 1NO:1 Normally Open Contact, Slow Double Contact

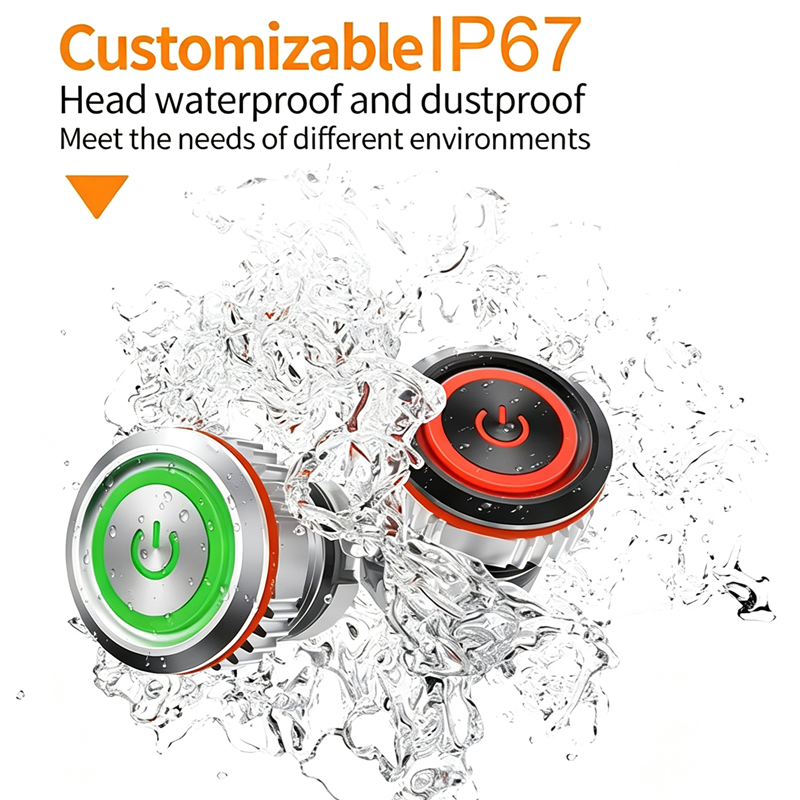

Waterproof Level IP65 / Customized IP67, Anti-collision IK10 (refer to GB/T 20138)
Heating Current
Ith:20A,250VAC
Working Environment
-40°C~+80°C (non-vacuum state, without freezing)
Insulation Resistance
≥1000MΩ
Contact Resistance
≤50mΩ
LED Voltage
5-24V,220V / Customized: 25-48V,110V AC/DC Universal
Resistive Load
AC-15: 110V/220V: 16A, DC-13:12V/24V: 16A
Inductive Load
AC-15: 110V/220V: 4A, DC-13: 110V:4A

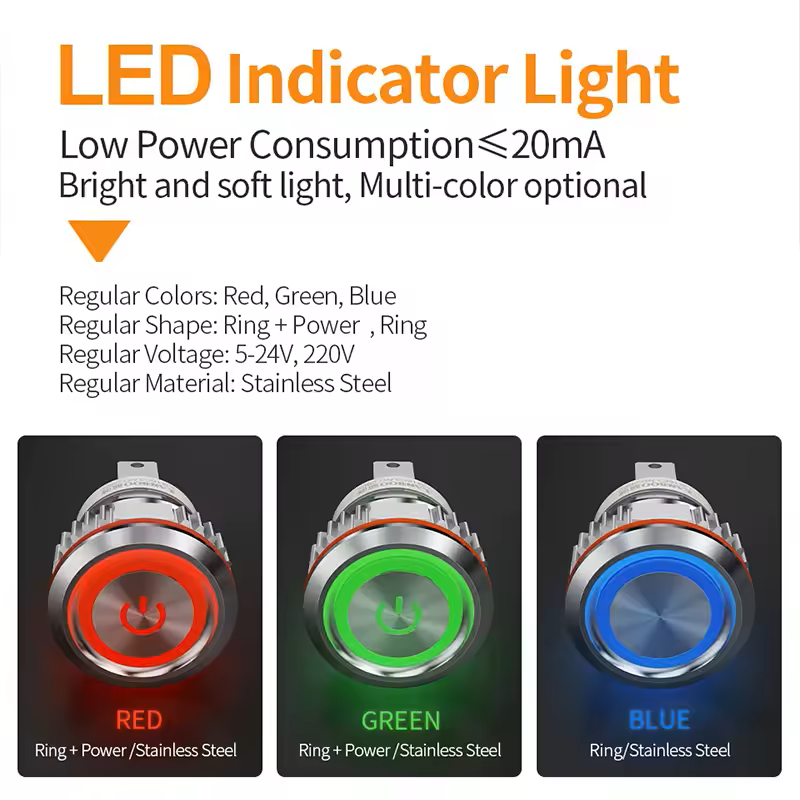

Glowing Shape
Ring / Customized: Ring+Power Symbol
Glow Color
Red, Green, Blue / Customized: Yellow, White
