Industrial Fuse Socket RT28N-32X 63X 1-3 Pole DIN Rail Mounted with Status Light

Regular price
$1.20
Regular price
Sale price
$1.20
Earn 0 Reward Points. Learn More...
Image: 5A RT28-32
Terms & conditions
Order in the next
to get it by
Details
  • SKU: RT28-000
  • Brand: Electrical Tools
  • Type: Knife-Type Contact Fuse‌
  • Availability: In Stock
Description

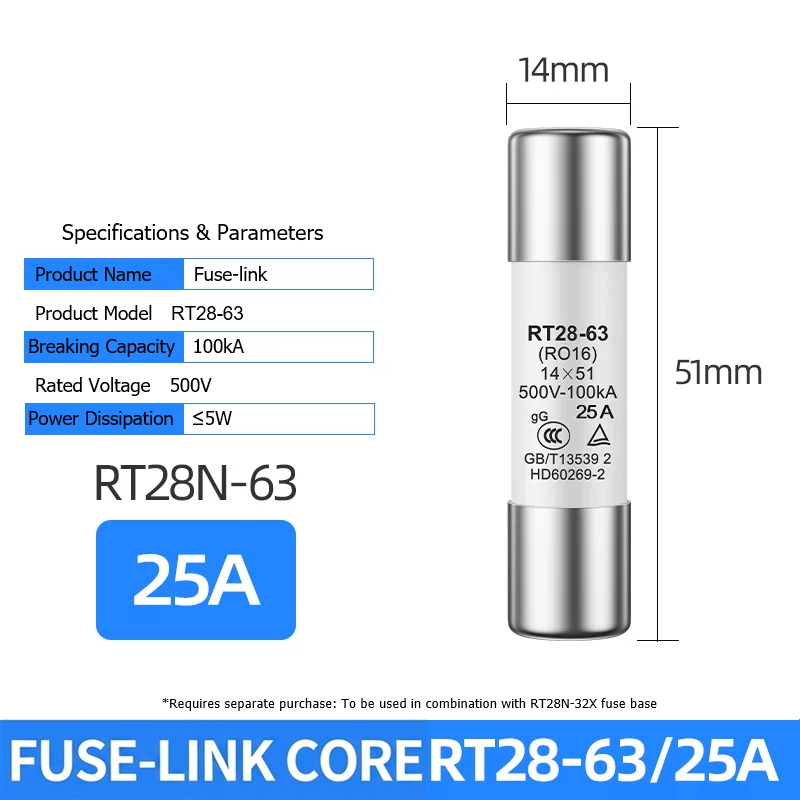

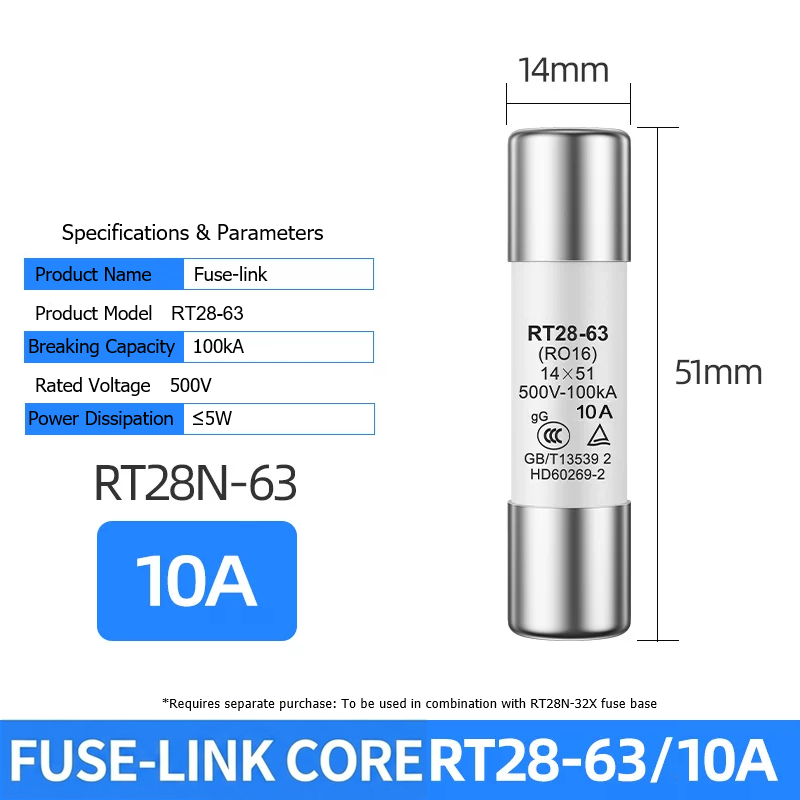

Product Name Cylindrical Cap Industrial Fuse
Fuse Link Standard RO15, dimension 10mm × 38mm ,RO16, dimension 14mm × 51mm
Rated Current 1A ~ 63A
Protection Degree IP20
Operating Temperature -5℃ ~ 40℃ (24h average ≤ 35℃)
Rated Voltage AC 500V (45Hz~62Hz), DC 440V
Breaking Capacity 20kA at rated voltage
Compatible Base Matched with RT28-32/63 DIN Rail Mount Base
Body Material Ceramic tube with silver/copper alloy melt, quartz sand arc-extinguishing medium
Protection Class gG full-range breaking, aM partial-range breaking (for motor short-circuit protection optional)
Core Function Overload and short-circuit protection for high-load distribution lines, large industrial equipment and distribution cabinets
