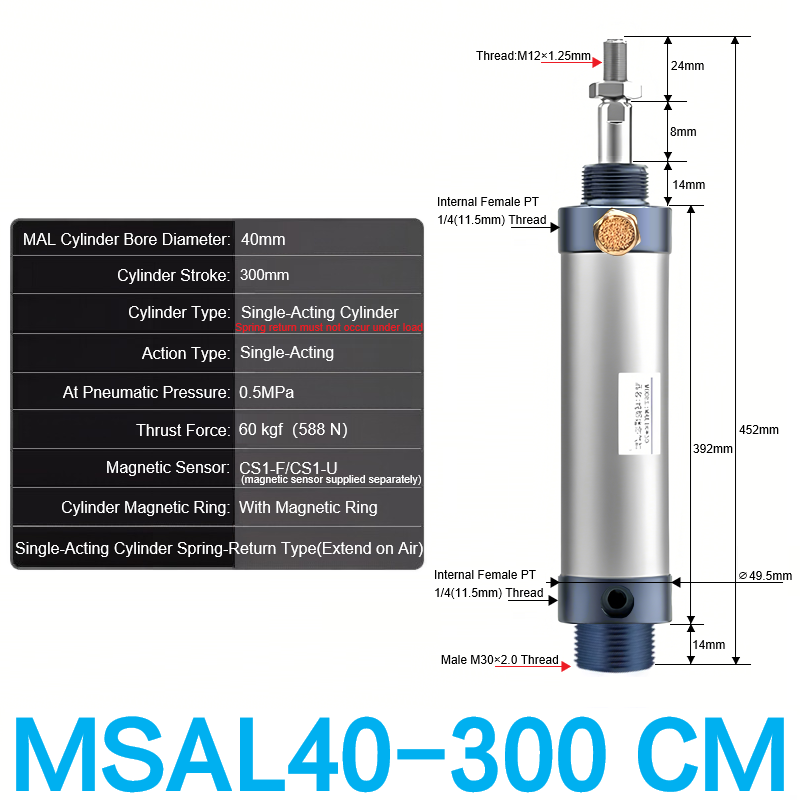

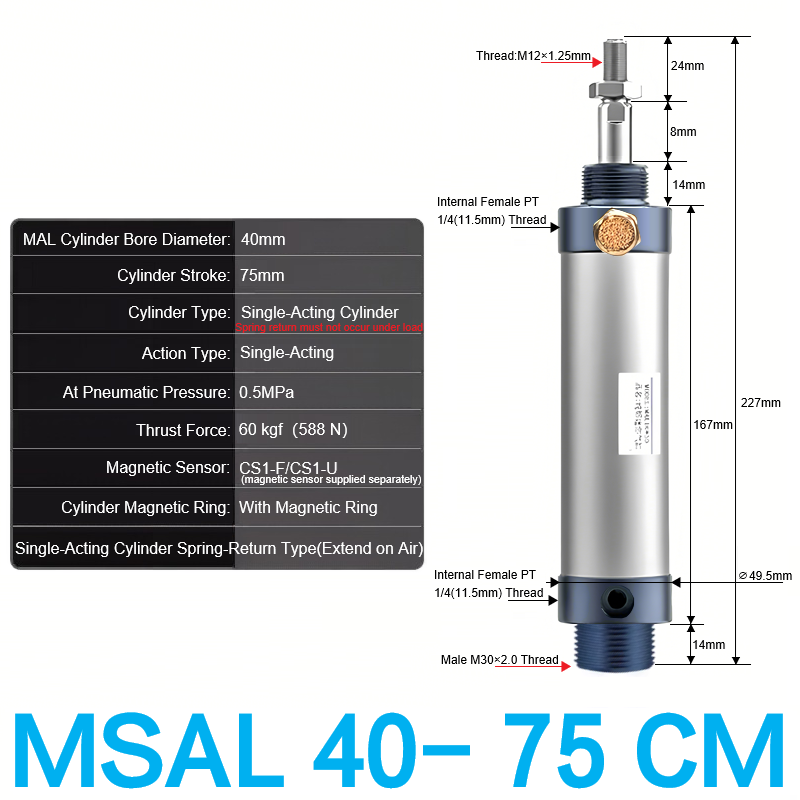

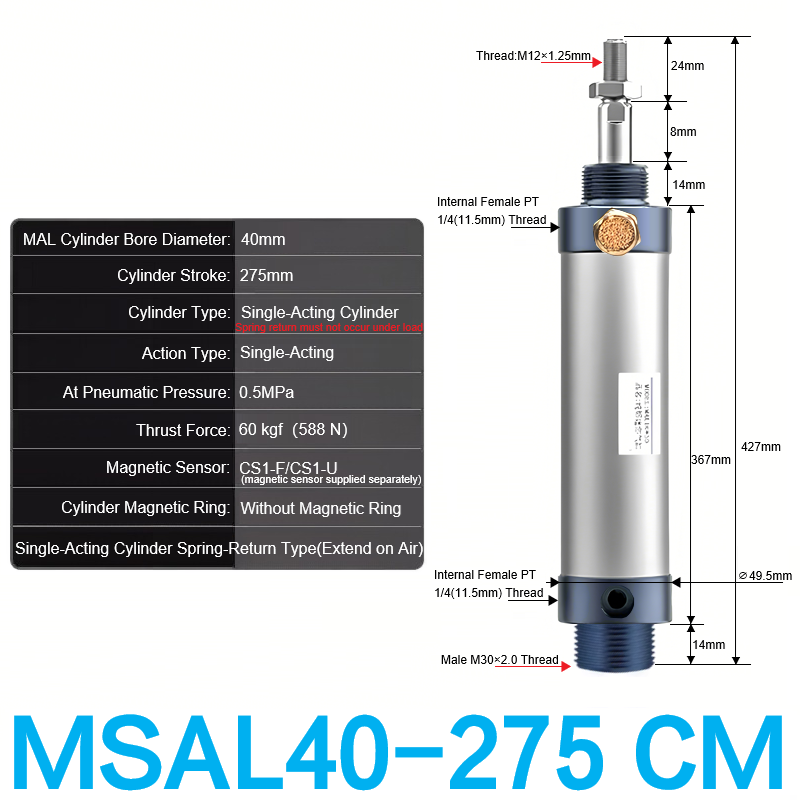

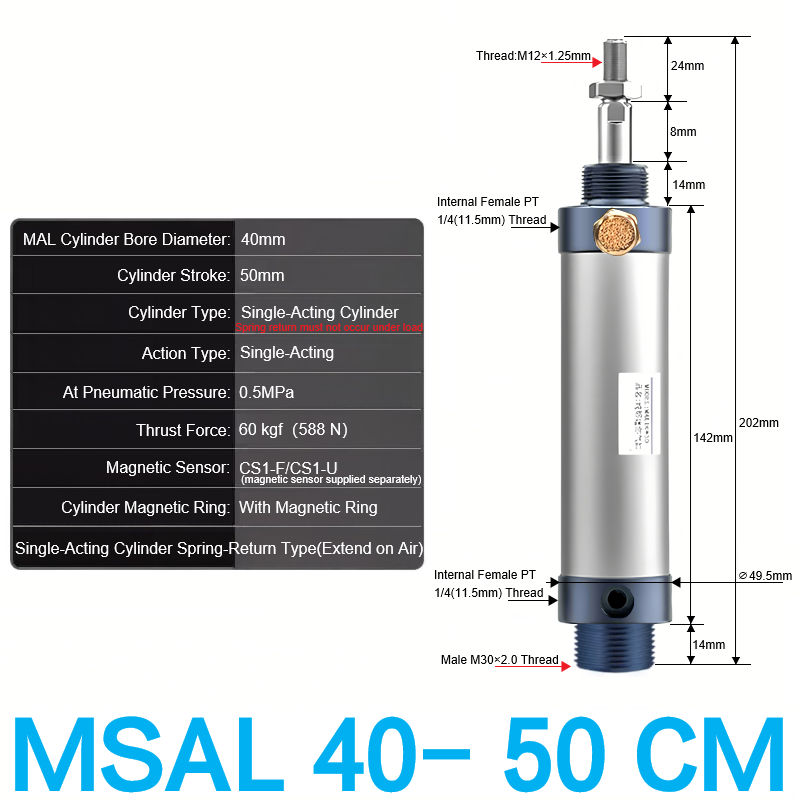

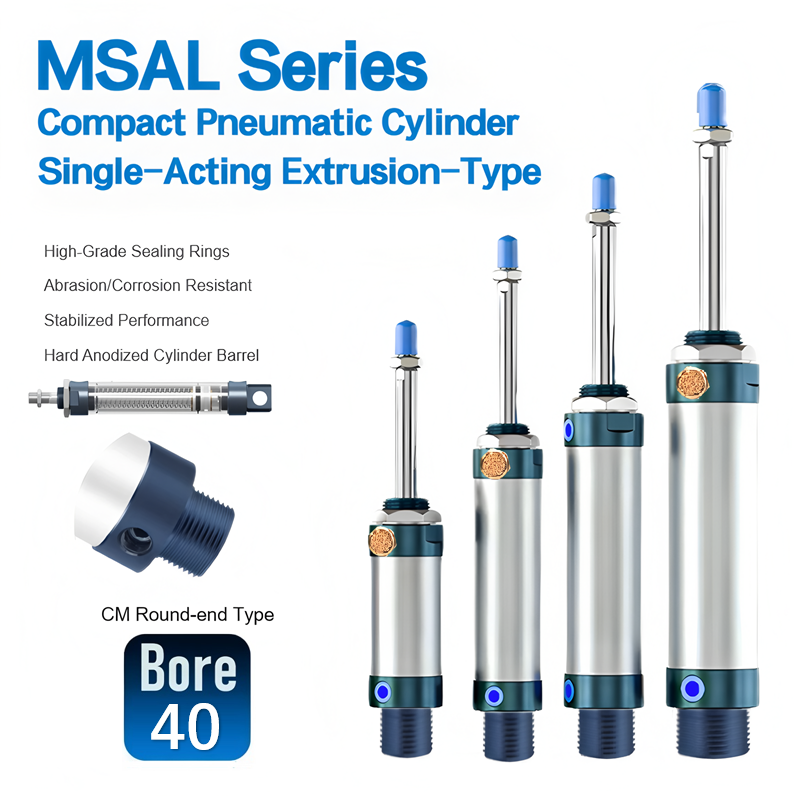

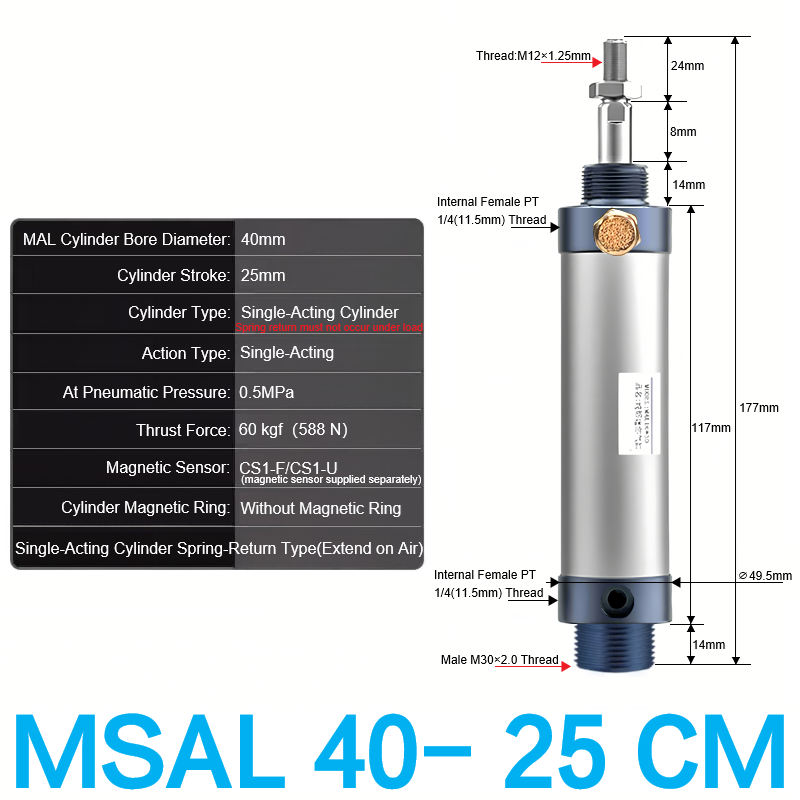

Spring Return Mini Pneumatic Cylinder - 40mm Bore CM-Type Flat Base
- Regular price
- $46.60
- Regular price
-
- Sale price
- $46.60
Earn 23 Reward Points.
Learn More...
Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.
Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.
When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.
We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.
You will also be asked to provide an email address, to which we will send confirmation that your order was placed.
Couldn't load pickup availability
Details
- SKU: MSAL40-00
- Brand: Electrical Tools
- Type: MSAL Pneumatic Cylinder
- Availability: In Stock
Description
| Model Series: | MSAL-E (Extrusion Type) |

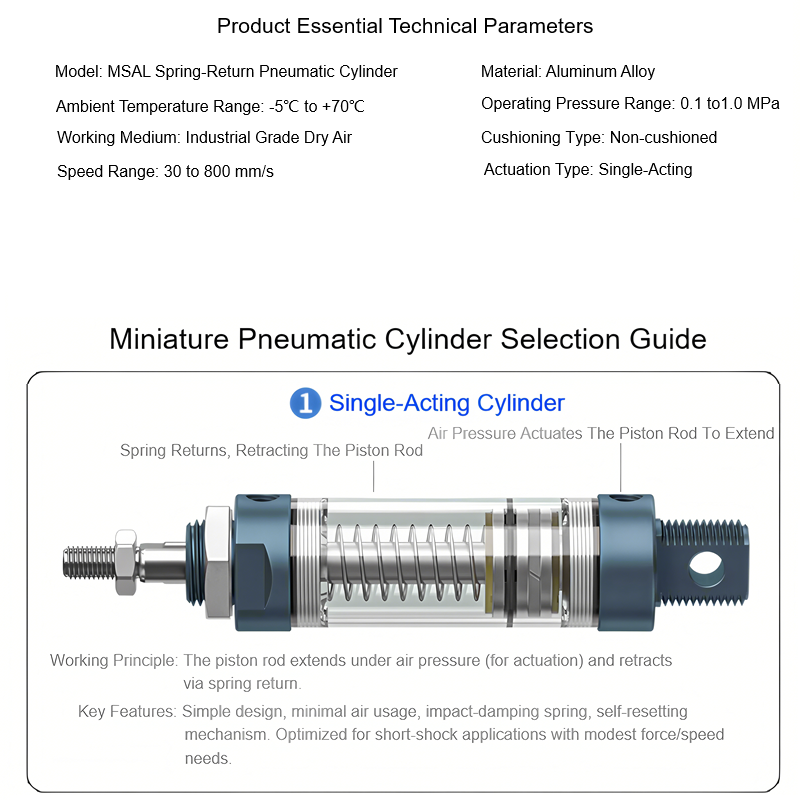

| Operation: | Single Acting with Spring Return |
| Bore Sizes: | 16mm / 20mm / 25mm / 32mm (standard) |
| Stroke Range: | 10mm-100mm (customizable up to 150mm) |
| Operating Pressure: | 0.15-0.9 MPa |
| Temperature Range: | -10°C to +70°C |
| Body Material: | Extruded Aluminum Alloy |

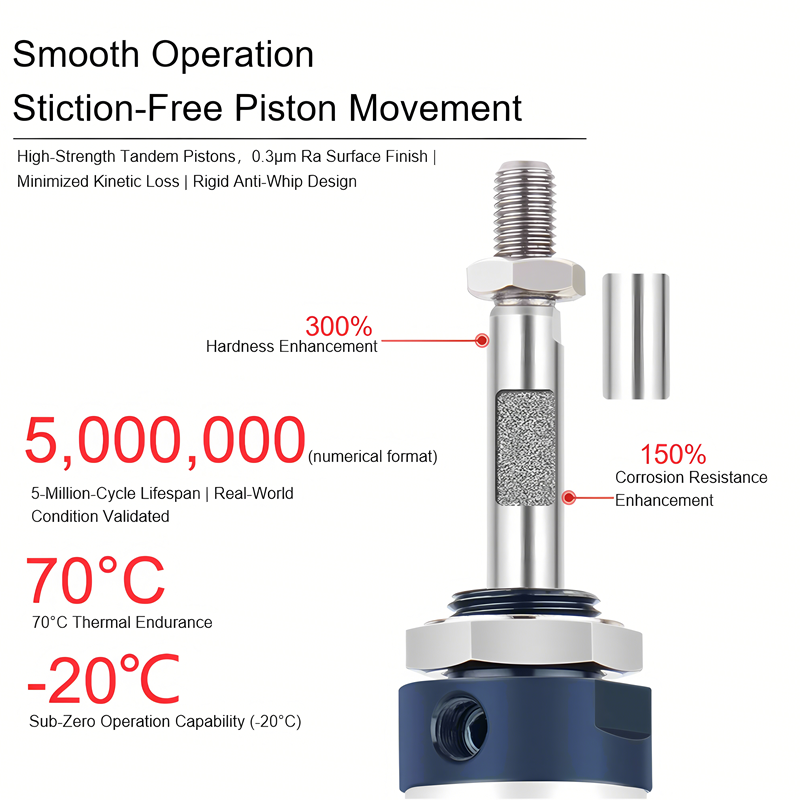

| Piston Rod: | Hard Chrome-Plated Stainless Steel (SUS304) |
| Seals: | NBR (standard) / FKM (optional for high temp) |
| Cushioning: | Elastic cushion at both ends (pneumatic cushion optional) |
