Spring Return Mini Pneumatic Cylinder - 16mm Bore U-Type Flat Base

Regular price
$22.60
Regular price
Sale price
$22.60
Earn 11 Reward Points. Learn More...
Image: MSAL 16-25 U
Terms & conditions
Order in the next
00d00h00m00s
to get it by Friday 25/7/2025
Details
  • SKU: MSAL16-00
  • Brand: Electrical Tools
  • Type: ‌MSAL Pneumatic Cylinder
  • Availability: In Stock
Description

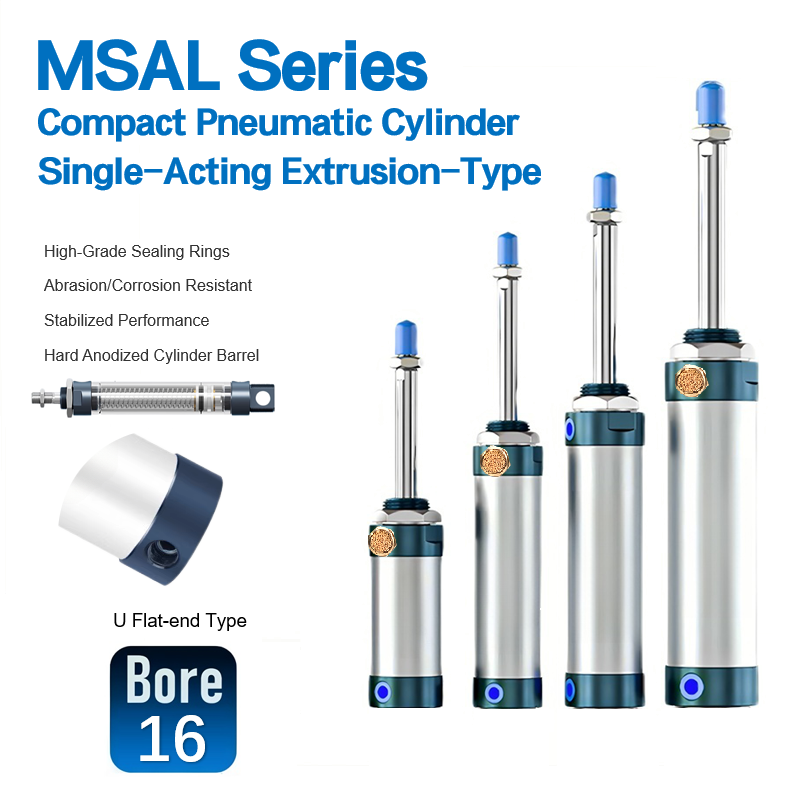

Model Series:  MSAL-E (Extrusion Type)
Operation:   Single Acting with Spring Return
Bore Sizes: 16mm / 20mm / 25mm / 32mm (standard)
Stroke Range:  10mm-100mm (customizable up to 150mm)
Operating Pressure: 0.15-0.9 MPa
Temperature Range:  -10°C to +70°C
Body Material: Extruded Aluminum Alloy
Piston Rod: Hard Chrome-Plated Stainless Steel (SUS304)
Seals: NBR (standard) / FKM (optional for high temp)
Cushioning: Elastic cushion at both ends (pneumatic cushion optional)
