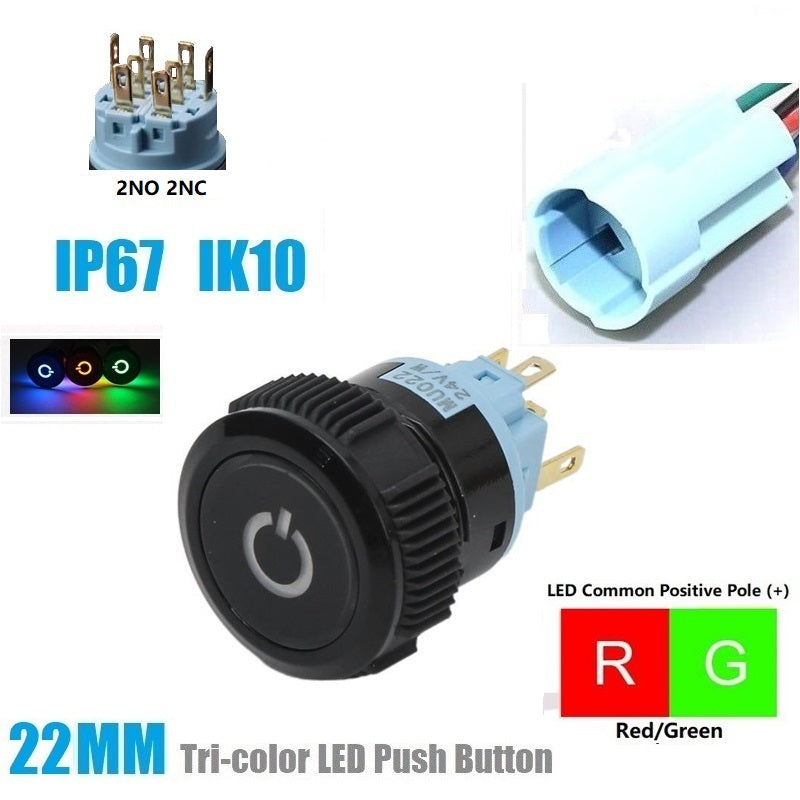

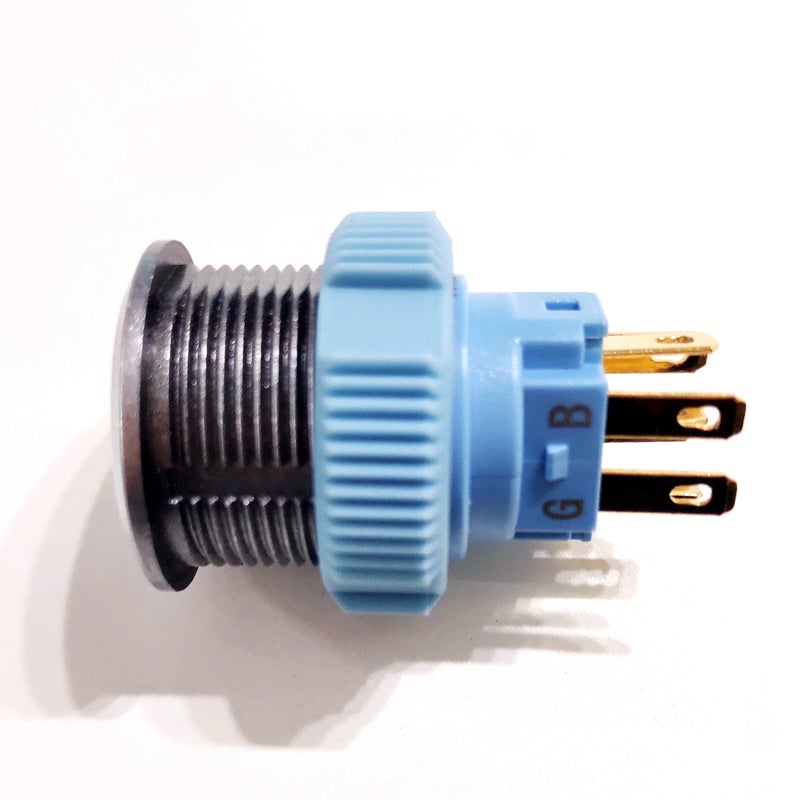

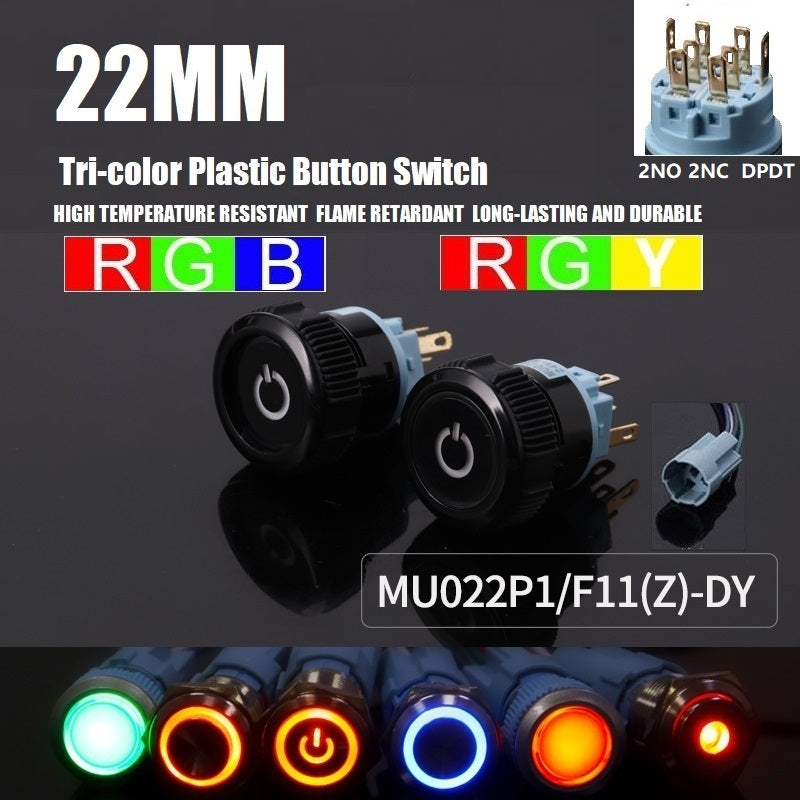

22mm Tri-color Flat Head Power symbol LED DPDT IP67 5A Black Plastic Anti-vandal Push Button Switch
- Regular price
- $13.20 USD
- Regular price
-
- Sale price
- $13.20 USD
- Unit price
- per
Earn 6 Reward Points.
Learn More...
Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.
Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.
When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.
We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.
You will also be asked to provide an email address, to which we will send confirmation that your order was placed.
Couldn't load pickup availability
Details
- SKU: MU022P1/F11-DY-3
- Brand: Electrical Tools
- Type: 22mm Tri-Color Plastic Push Button
- Availability: In Stock

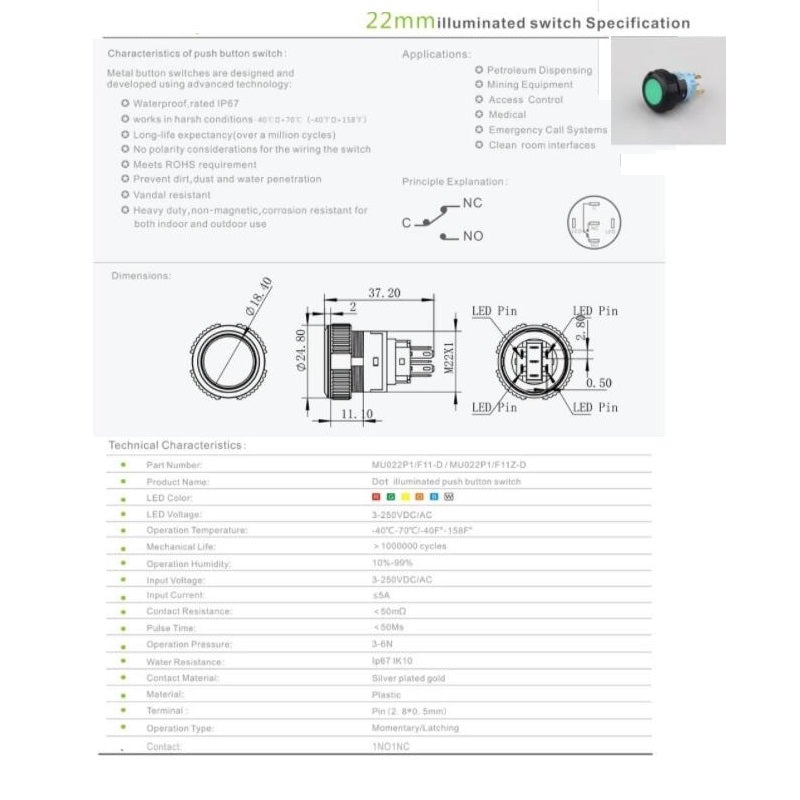

Description

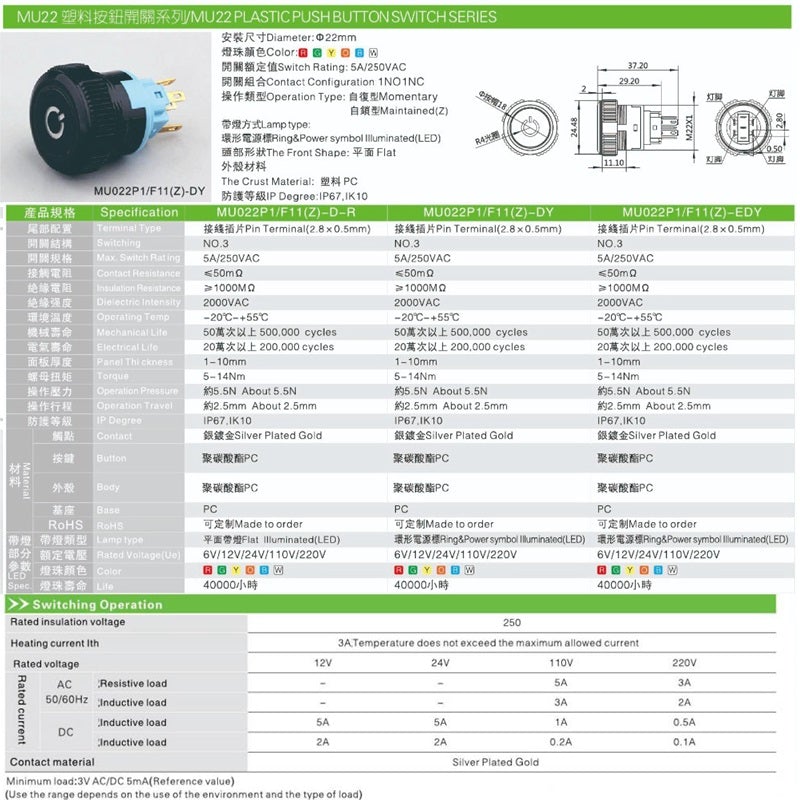

| Model Number: | MU022P1-F22-DY-B9 |
| Protection Level: | IP65/IP67,IK10 |
| Max. Current: | 5A |
| Max. Voltage: | 250V AC/DC |

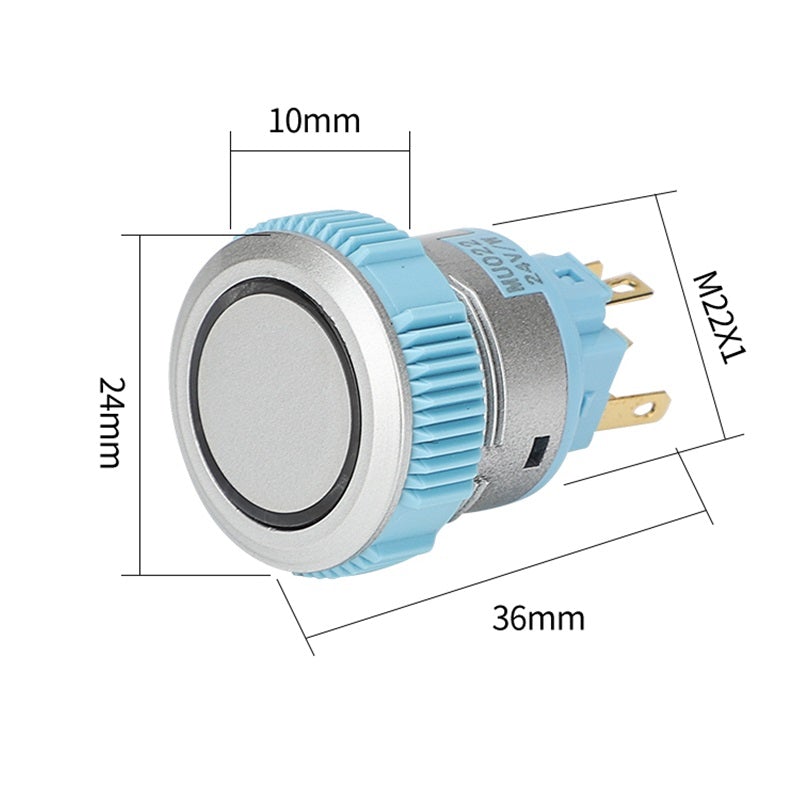

| Installation diameter: | 22mm |
| The Material: | Plastic |
| Electrical Life: | 200,000 operation minimum(at full rated load) |
| Mechanical Life: | Maintained:100,0000 Momentary:100,0000 Selector/Keylock:250000 |

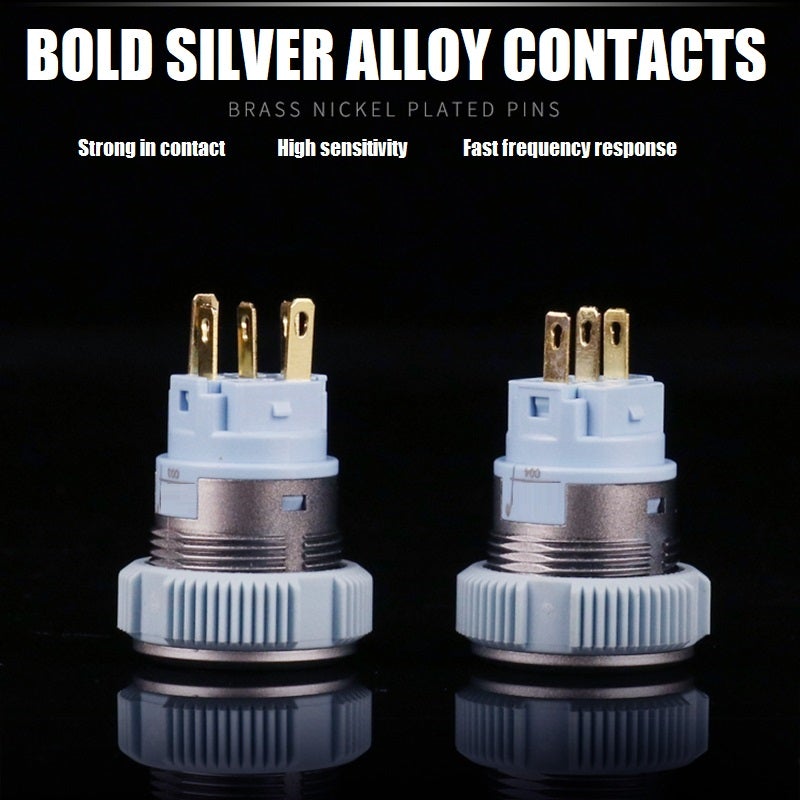

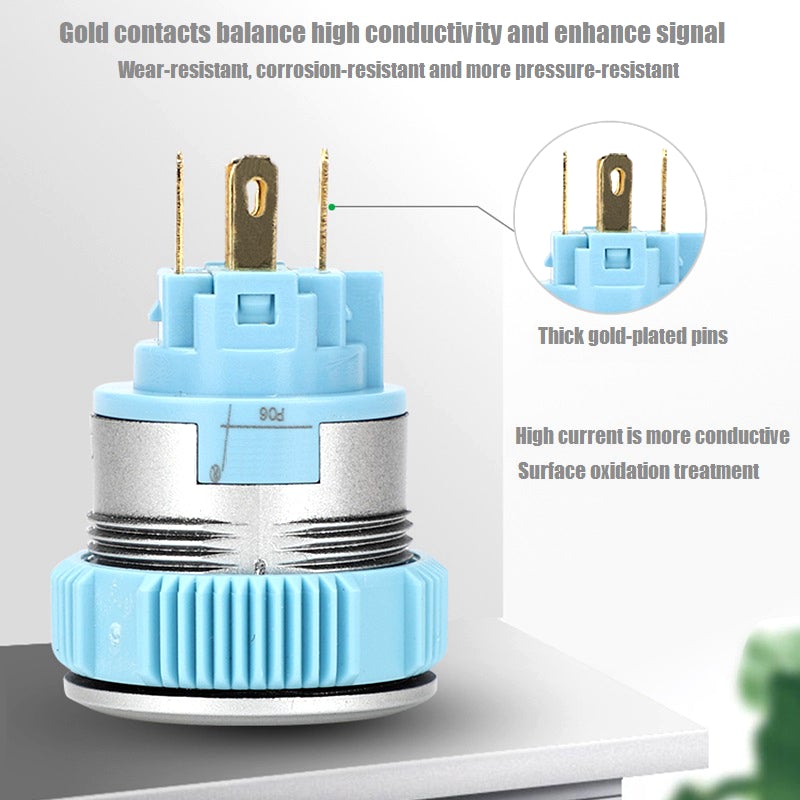

| Contact Material: | Silver Plated gold |
| Operation type: | Momentary or latching(self-locking) |
| Connect terminal: | 9Pin/10Pin Terminal |
| Contact configuration: | 2NO 2NC(DPDT) |

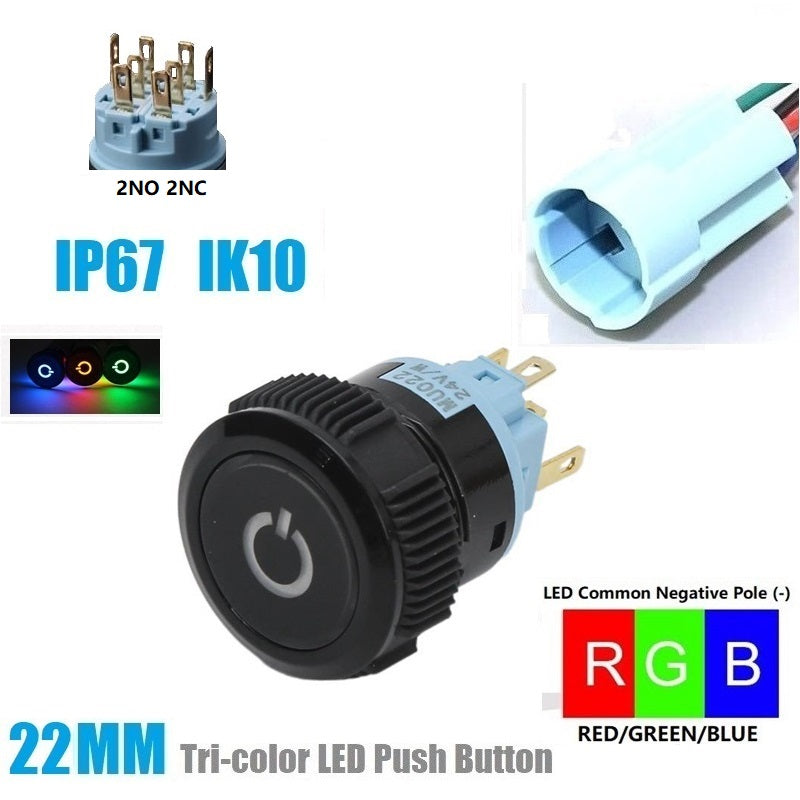

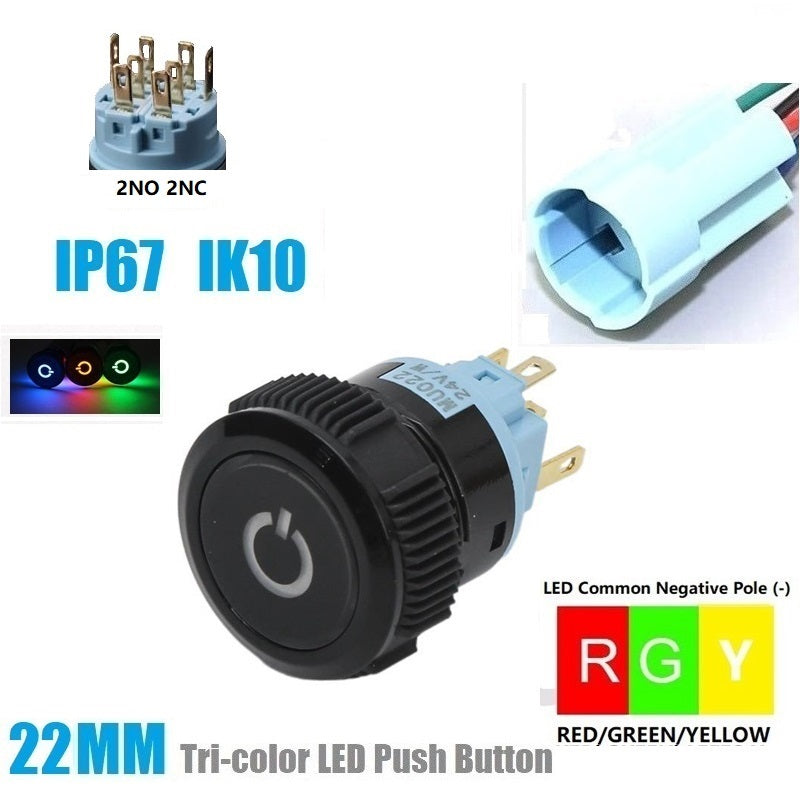

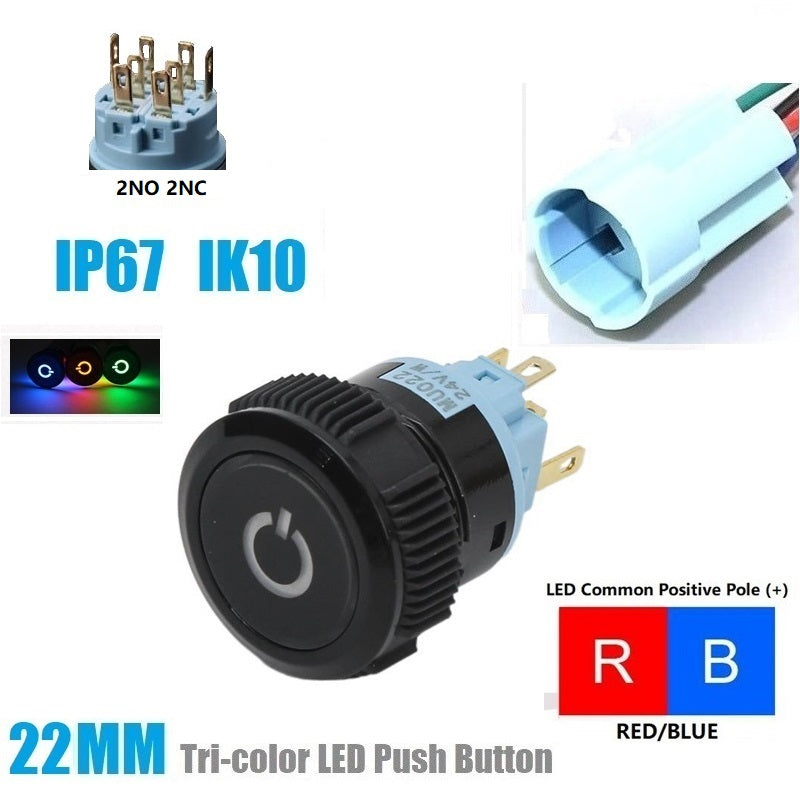

| Tri-color LED: | Red, Green, Blue/Red,Green,Yellow |
| The colour of the LED: | Bi-color,Tri-color |
| The voltage of the LED: | From 3V to 230V(such as 6v 12v 24v 110v 220v) |
| Product type: | Black plastic power switch |
| Product Safety Certification: | CE, CCC,ROHS,REECH |
