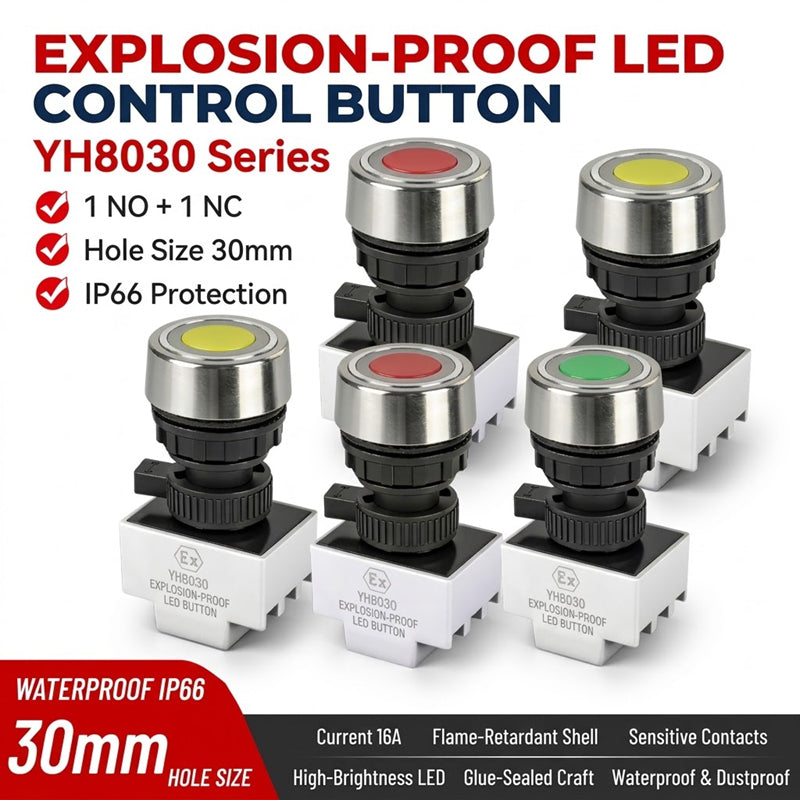

30mm Explosion-Proof Illuminated Self-Reset Push Button Stainless Steel Corrosion Resistant Emergency Stop Switch

Certified for Hazardous Locations, Built for Chemical, Oil & Gas Harsh Environments
This BA8030 explosion-proof corrosion-resistant push button is purpose-engineered for 1区 and 2区 explosive gas environments, combining illuminated self-reset operation and BD series emergency stop functionality in one unified 30mm stainless steel housing. It eliminates the risk of internal arcing igniting surrounding flammable media, delivering reliable safety performance that standard commercial push buttons cannot match.

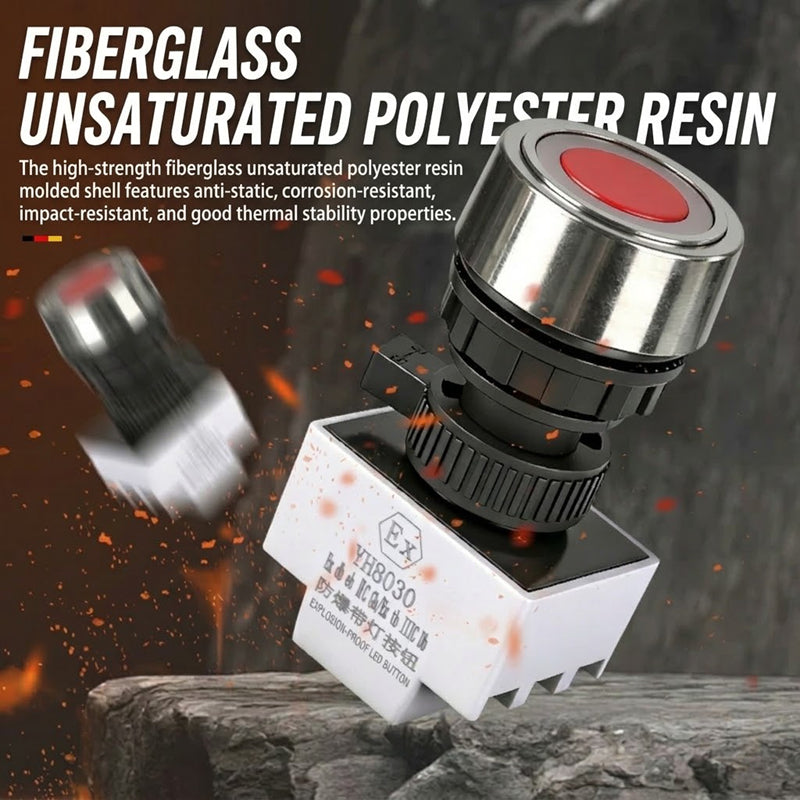

Constructed from solid 30mm 304 stainless steel, the one-piece machined housing offers exceptional impact resistance, scratch proof performance, and long-term corrosion resistance against chemical vapors, salt spray, and industrial washdown fluids. Its reinforced flameproof joint gap strictly complies with global explosion protection standards, preventing any internal explosion from spreading to the external hazardous atmosphere.

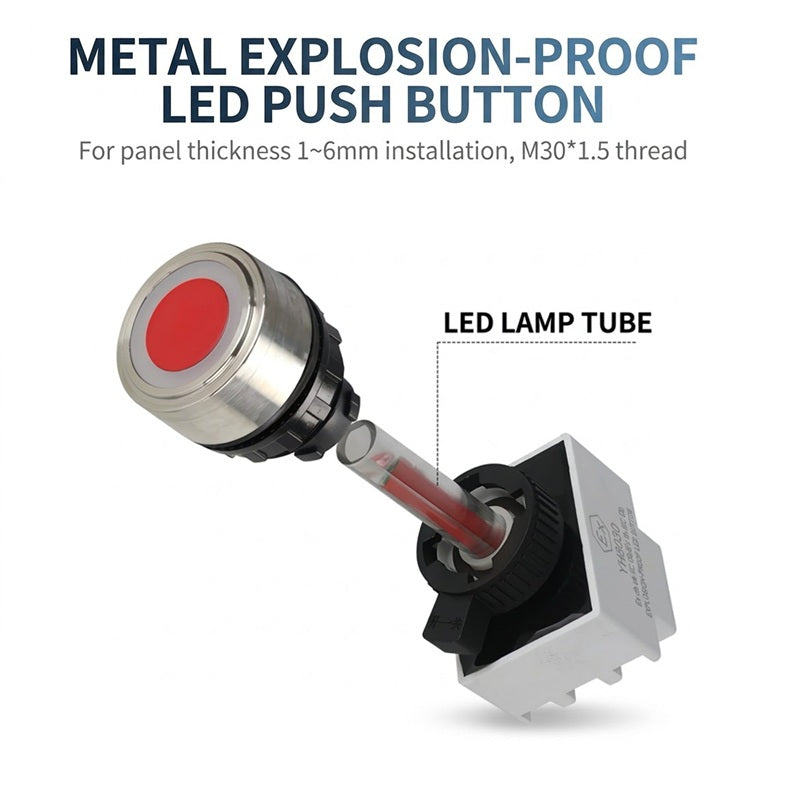

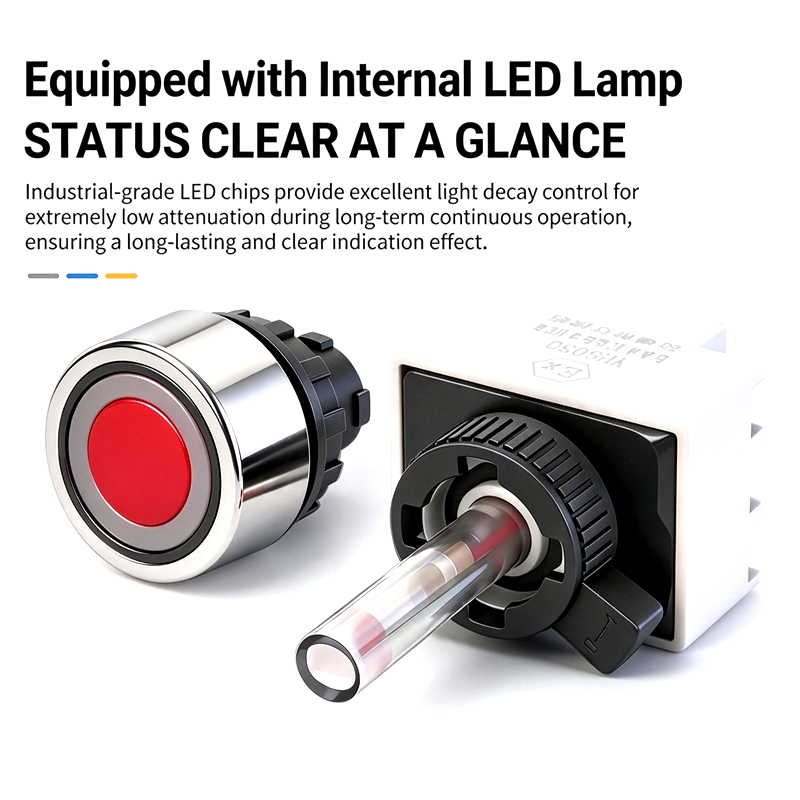

The integrated high-brightness LED status indicator delivers clear visual feedback from over 5 meters away, letting operators confirm circuit power state at a glance even in dim, dusty workshop conditions. The self-reset momentary operation automatically returns to the original position after release, preventing accidental continuous contact risks that come with latching switches for routine start/stop control. The BD series emergency stop variant offers a prominent raised mushroom head design for quick, intuitive one-hand activation during urgent scenarios.
Rated with Exed IIB T6 explosion protection marking and IP66 ingress protection, the switch is fully dust-tight and resistant to high-pressure water jet cleaning. It operates stably across a -20°C to +60°C working temperature range, making it suitable for long-term deployment in chemical plants, oil refineries, gas stations, pharmaceutical factories, and mining surface control panels.

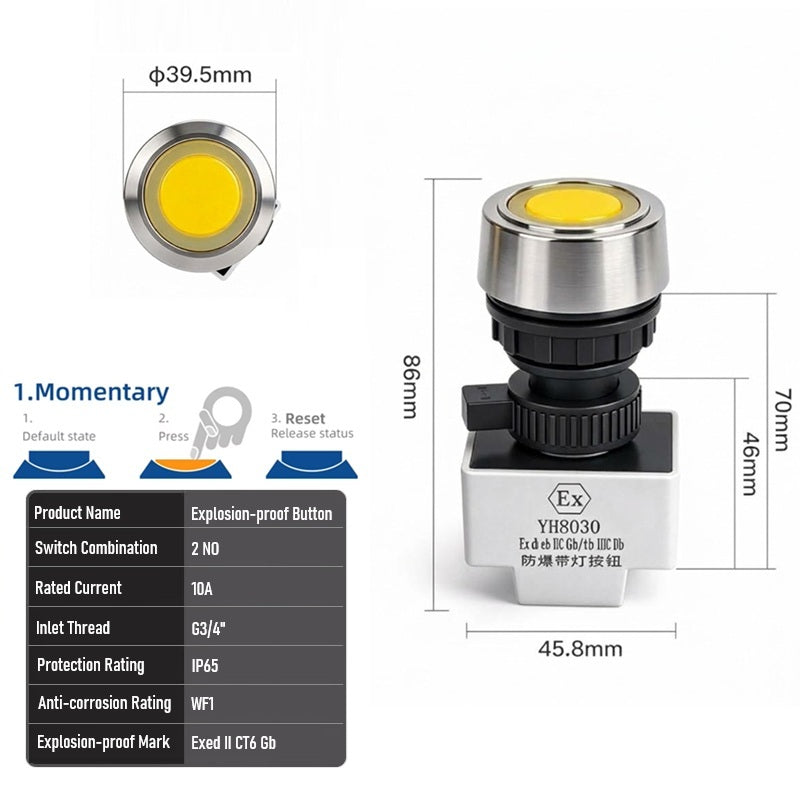

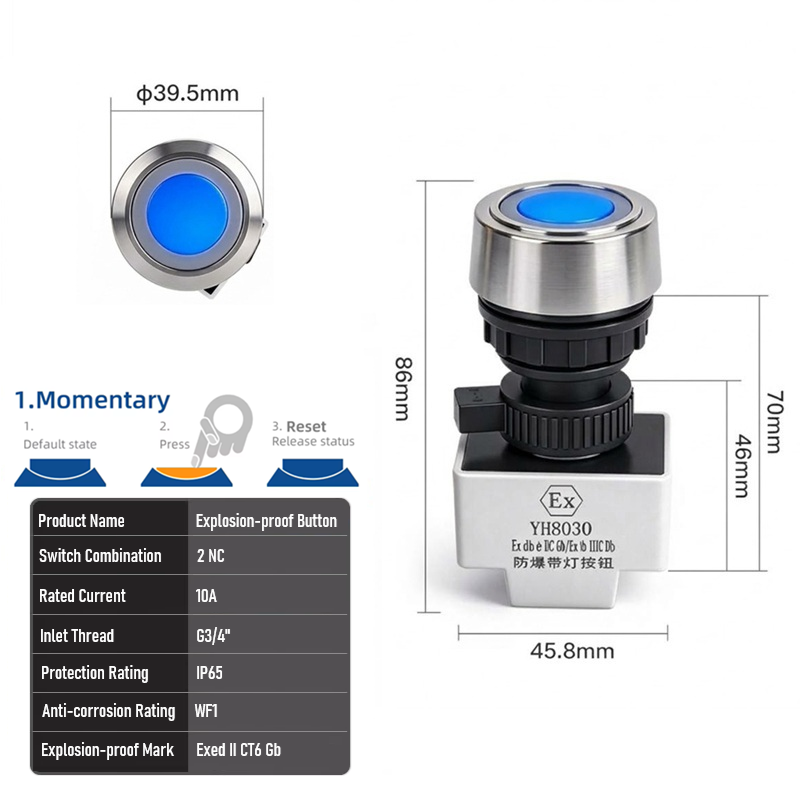

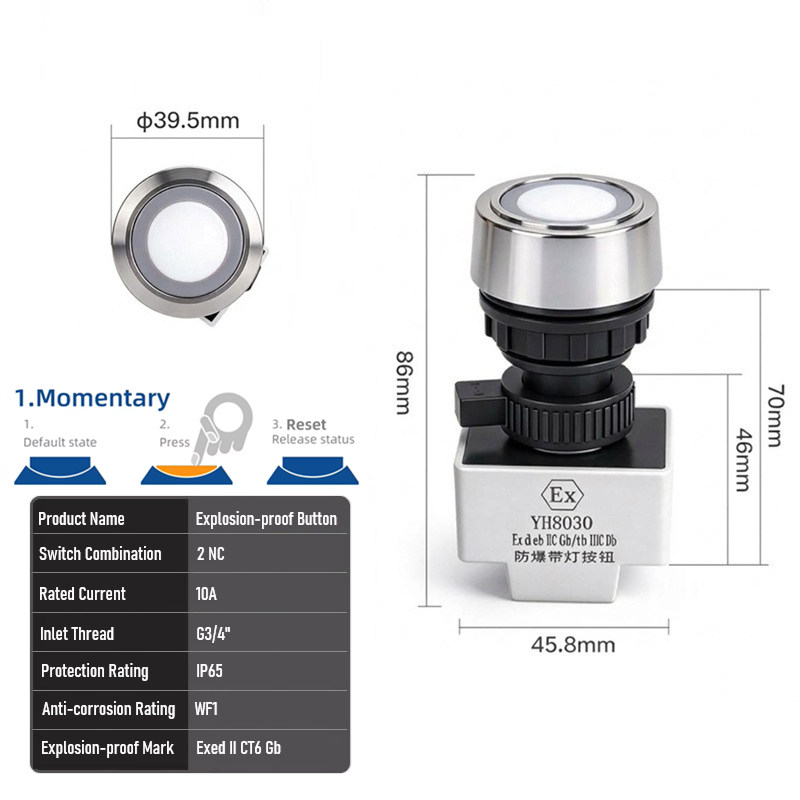

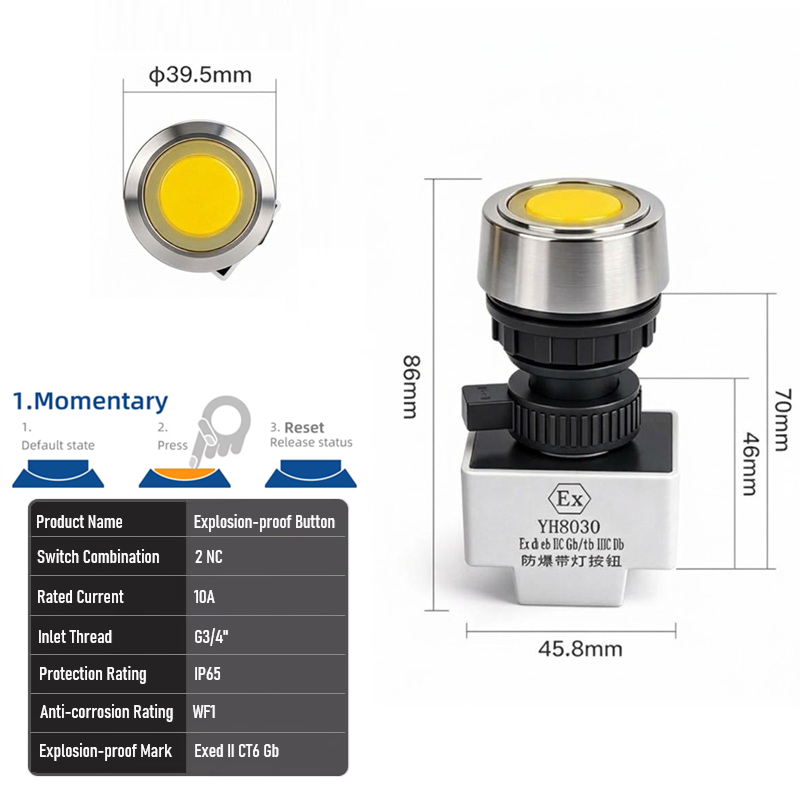

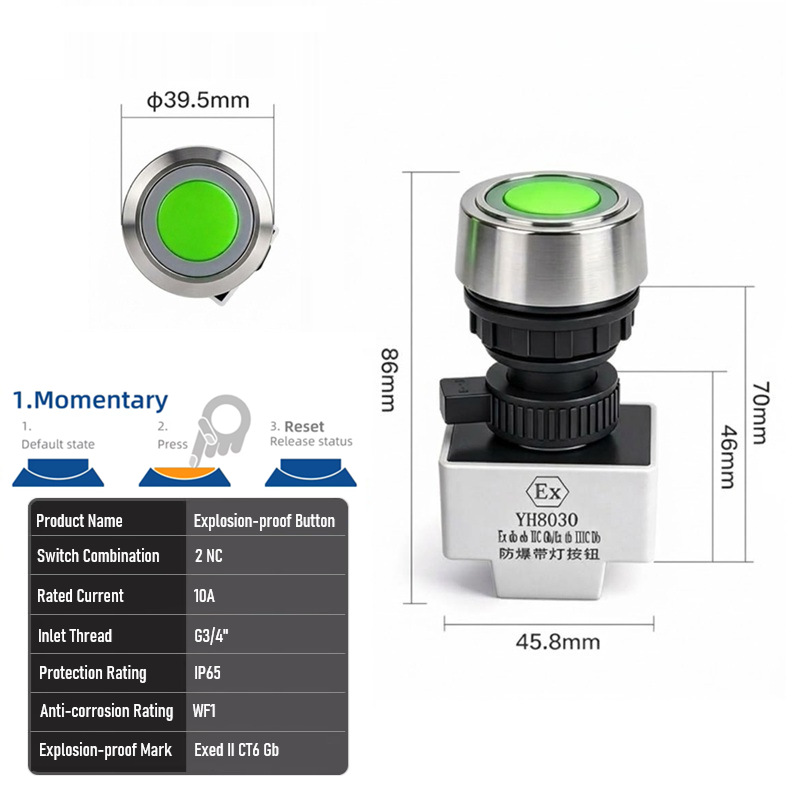

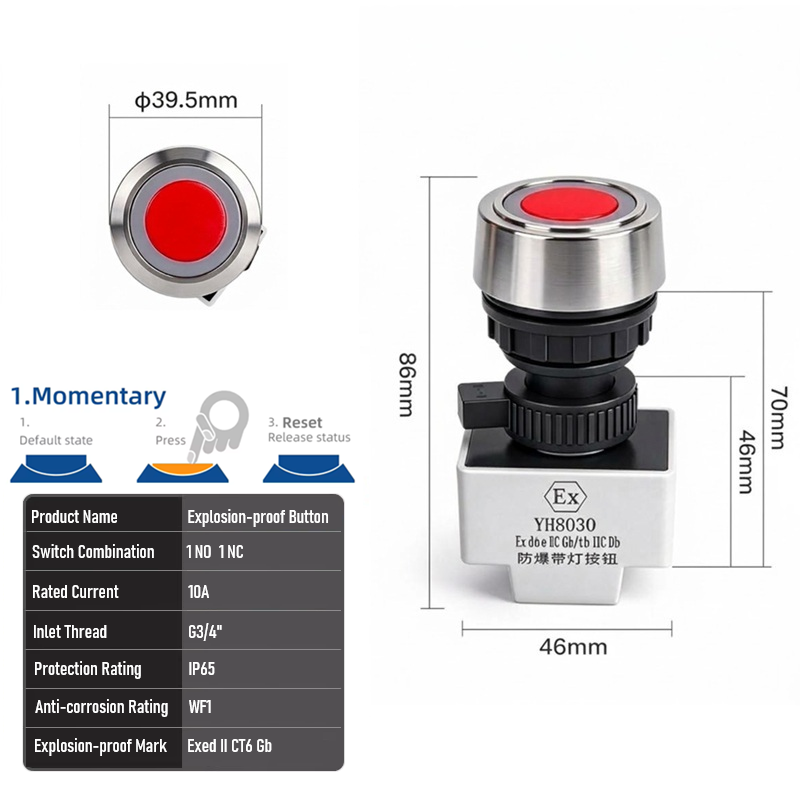

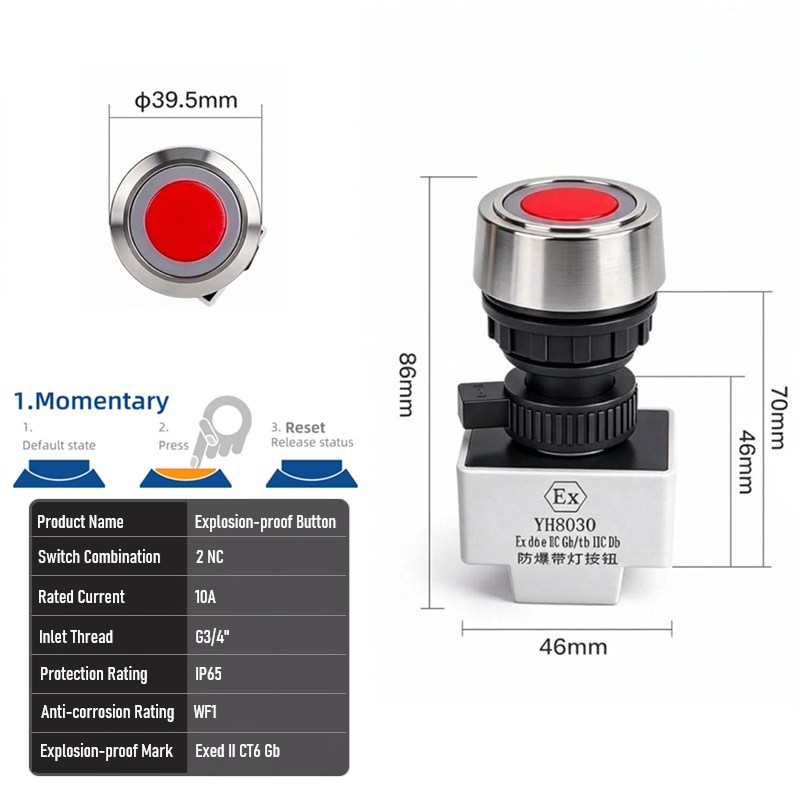

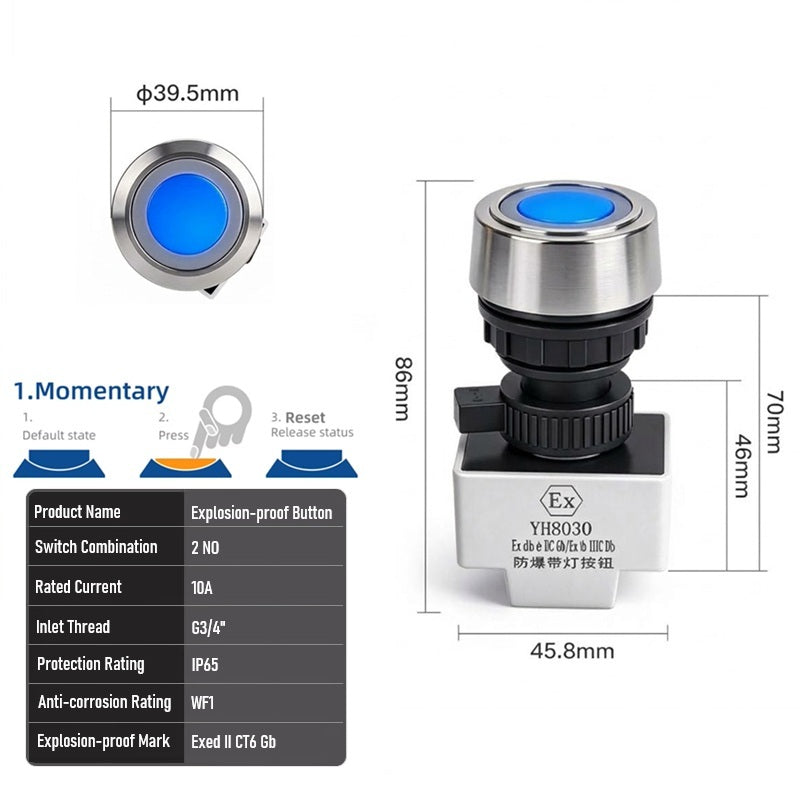

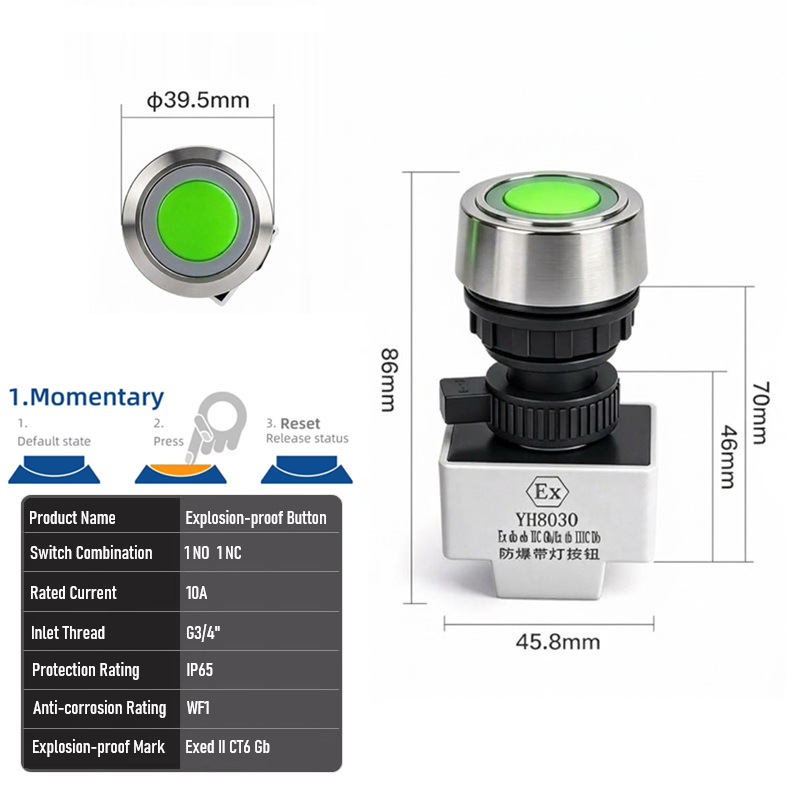

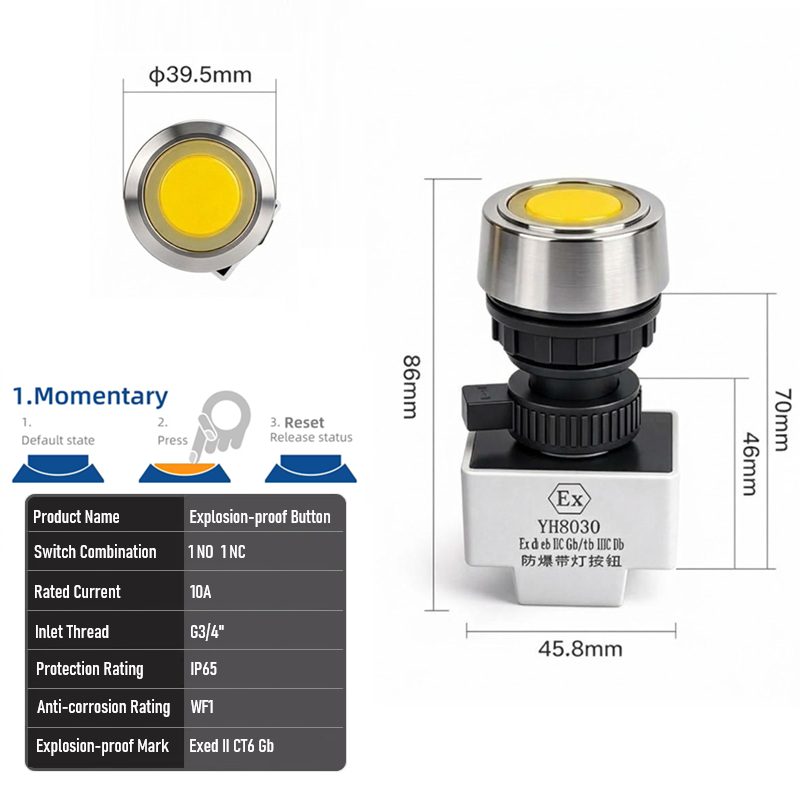

Key Specifications
● Product Model: BA8030 Explosion-Proof Illuminated Push Button, BD Series Emergency Stop Variant

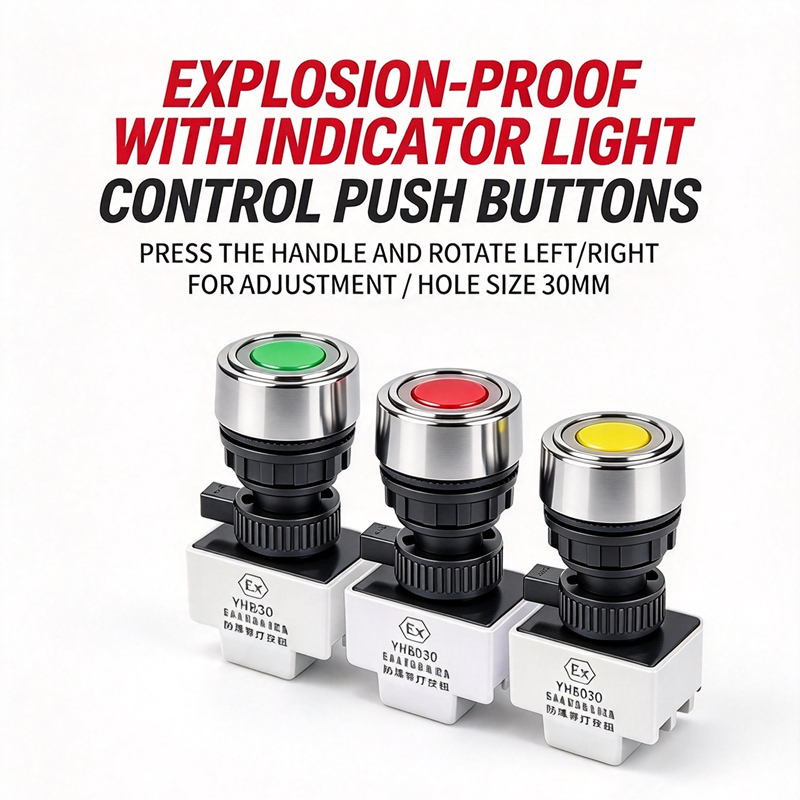

● Mounting Hole Diameter: 30mm, fits standard 30mm industrial control panel cutouts
● Housing Material: 304 stainless steel, CNC machined one-piece flameproof structure
● Explosion Protection Marking: Exed IIB T6, compliant for Zone 1 / Zone 2 hazardous locations
● Protection Grade: IP66, dust-tight and resistant to high-pressure water jet washdown
● Corrosion Resistance Grade: WF2, long-term performance in corrosive vapor environments
● Operation Mode: Illuminated self-reset (momentary) / BD series emergency stop (latching twist-reset)
● Electrical Rating: Up to 10A 250VAC, compatible with most industrial control circuits

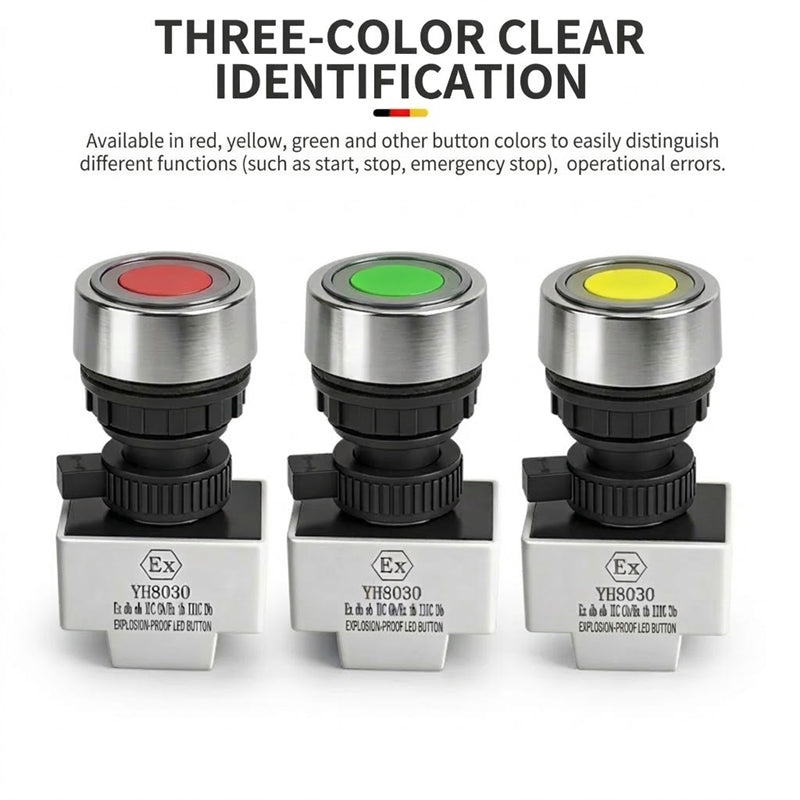

● Illumination Voltage: 12V / 24V / 110V / 220V optional, red/green/yellow color customizable
● Contact Configuration: 1NO 1NC / 2NO 2NC for selection
● Mechanical Lifespan: ≥ 1,000,000 operation cycles
● Certification: CE, RoHS, ATEX compliant for global industrial market access
● Installation Method: Flush panel mounting, supports both steel pipe and cable wiring
Typical Application Scenarios
This BA8030 explosion-proof push button is widely deployed in chemical production lines, oil and gas refinery control panels, offshore platform auxiliary equipment, pharmaceutical manufacturing workshops, paint spraying booths, and gas station control systems. It serves as a direct drop-in replacement for most 30mm standard explosion-proof push buttons, requiring no extra panel modification during installation.
Every unit passes 3 rounds of strict pre-shipment quality inspections, including explosion-proof flame gap verification, IP66 water pressure test, contact continuity check, and LED illumination brightness inspection. We maintain consistent batch quality, fast order fulfillment, and support custom contact configuration, illumination color and voltage options for bulk industrial projects.
Replace ordinary non-explosion-proof switches in your hazardous area operations with this certified model, to meet site safety compliance requirements and reduce operational risk.
